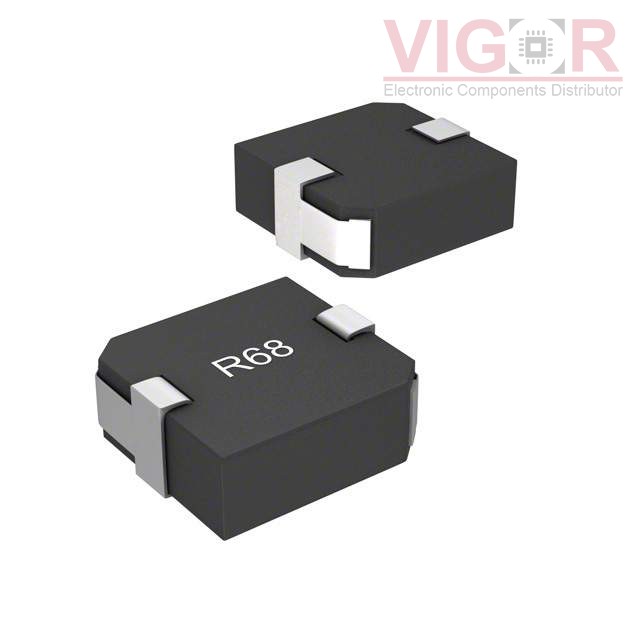

SRP1040-R80M

Part No :: SRP1040-R80M

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4447405

Description: FIXED IND 800NH 21A 3 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP1040-R80M PDF

Country of origin: -

Date code: -

SRP1040-R80M Specifications

Type	Description
Series:	SRP1040
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	-
Material - Core:	Iron
Inductance:	800 nH
Tolerance:	±20%
Current Rating (Amps):	21 A
Current - Saturation (Isat):	30A
Shielding:	Shielded
DC Resistance (DCR):	3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.465" L x 0.413" W (11.80mm x 10.50mm)
Height - Seated (Max):	0.165" (4.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 20 - Apr 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of SRP1040-R80M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ELL-5PS100M

FIXED IND 10UH 1.1A 120 MOHM SMD

LHL06NB3R9K

FIXED IND 3.9UH 530MA 270 MOHM

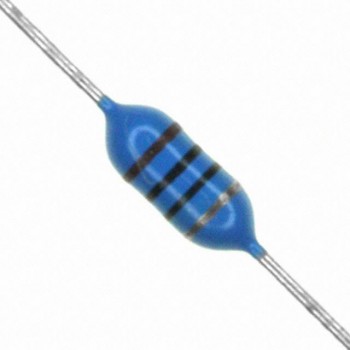

78F100J
