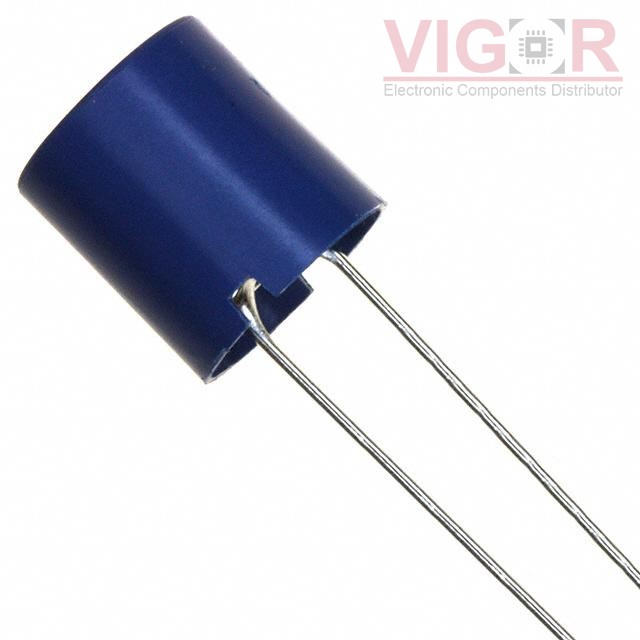

TSL1112RA-220K2R9-PF

TSL1112RA-220K2R9-PF

Image is for reference,
please contact us to get the real picture

Part No :

TSL1112RA-220K2R9-PF

Manufacturer
TDK Corporation
Description
FIXED IND 22UH 2.9A 40 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
TSL1112RA-220K2R9-PF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TSL1112RA-220K2R9-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSL1112RA-220K2R9-PF Specifications
Type Description
Series:TSL
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Type:-
Material - Core:-
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):2.9 A
Current - Saturation (Isat):3.4A
Shielding:Unshielded
DC Resistance (DCR):40mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:9.5MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.441" Dia (11.20mm)
Height - Seated (Max):0.492" (12.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ELC-12E182L

ELC-12E182L

FIXED IND 1.8MH 320MA 1.9 OHM TH

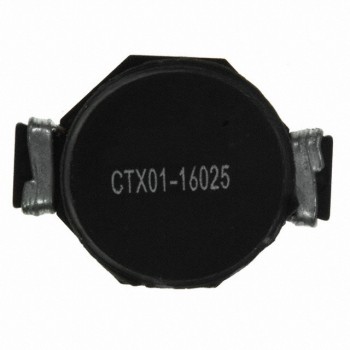

HOT CTX01-16025
