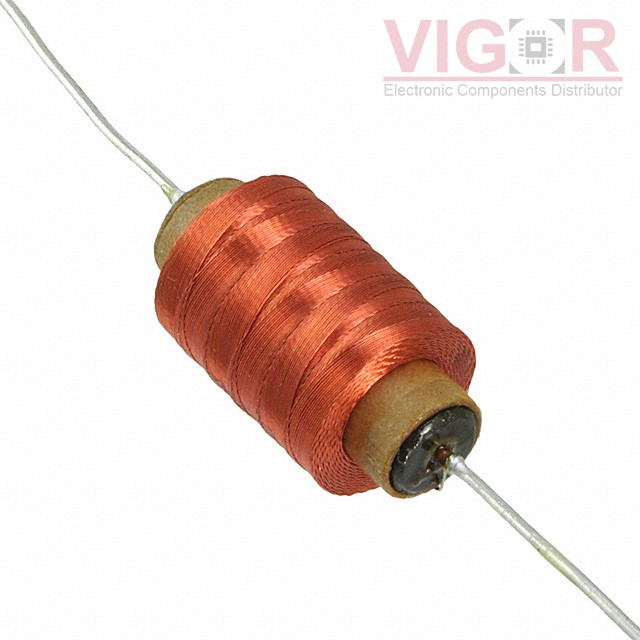

70F151AF-RC

Part No :: 70F151AF-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4447590

Description: FIXED IND 150MH 44MA 328 OHM TH

Catalog: Fixed Inductors

DataSheet: 70F151AF-RC PDF

Country of origin: -

Date code: -

70F151AF-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	150 mH
Tolerance:	±5%
Current Rating (Amps):	44 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	328Ohm Max
Q @ Freq:	49 @ 25kHz
Frequency - Self Resonant:	77kHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	25 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.500" Dia x 0.880" L (12.70mm x 22.35mm)
Height - Seated (Max):	-
