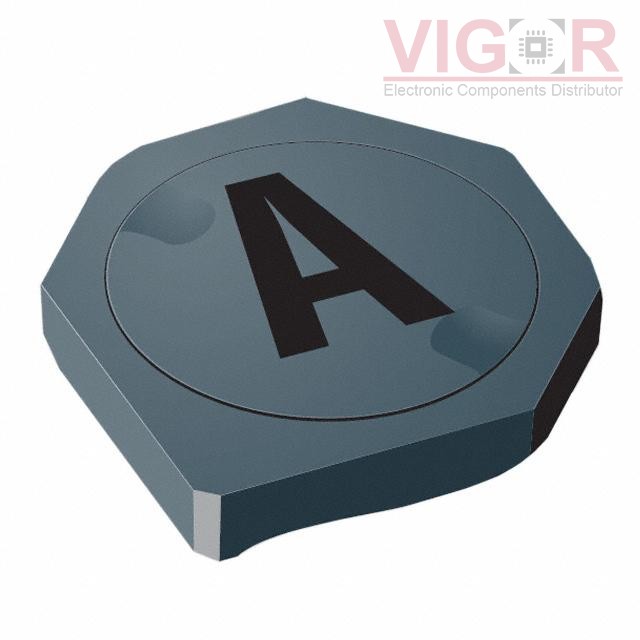

SRU3009-220Y

Part No :: SRU3009-220Y

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4447621

Description: FIXED IND 22UH 220MA 1.45OHM SMD

Catalog: Fixed Inductors

DataSheet: SRU3009-220Y PDF

Country of origin: -

Date code: -

SRU3009-220Y Specifications

Type	Description
Series:	SRU3009
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±30%
Current Rating (Amps):	220 mA
Current - Saturation (Isat):	250mA
Shielding:	Shielded
DC Resistance (DCR):	1.45Ohm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	40MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max):	0.041" (1.05mm)
