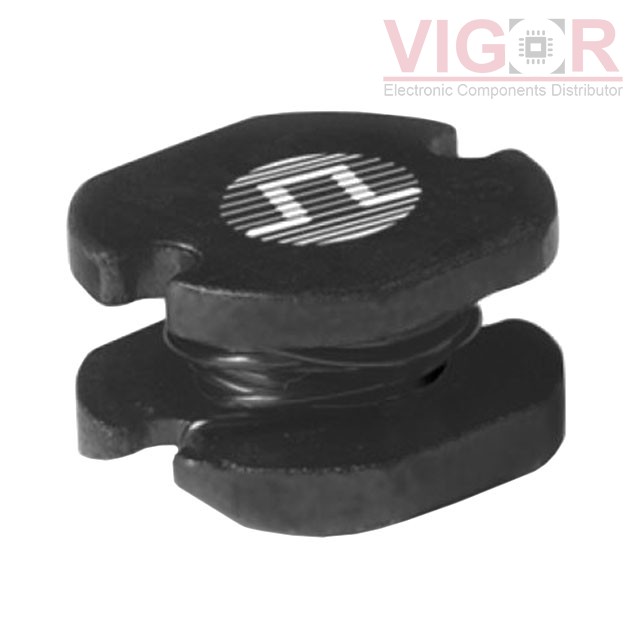

PG0015.564NLT

Part No :: PG0015.564NLT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4447640

Description: FIXED IND 560UH 320MA 1.9 OHM

Catalog: Fixed Inductors

DataSheet: PG0015.564NLT PDF

Country of origin: -

Date code: -

PG0015.564NLT Specifications

Type	Description
Series:	PG0015NL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	560 µH
Tolerance:	±20%
Current Rating (Amps):	320 mA
Current - Saturation (Isat):	320mA
Shielding:	Unshielded
DC Resistance (DCR):	1.9Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	2.2MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	-
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.400" L x 0.360" W (10.15mm x 9.15mm)
Height - Seated (Max):	0.219" (5.55mm)
