CW252016-100J

CW252016-100J

Image is for reference,
please contact us to get the real picture

Part No :

CW252016-100J

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 10UH 200MA 4.2 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
DataSheet
CW252016-100J PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CW252016-100J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW252016-100J Specifications
Type Description
Series:CW252016
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±5%
Current Rating (Amps):200 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):4.2Ohm
Q @ Freq:18 @ 7.9MHz
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.071" (1.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT L06033R9BHLTR

L06033R9BHLTR

FIXED IND 3.9NH 500MA 120 MOHM
HOT HKQ0603U3N3S-T

HKQ0603U3N3S-T

FIXED IND 3.3NH 415MA 280 MOHM

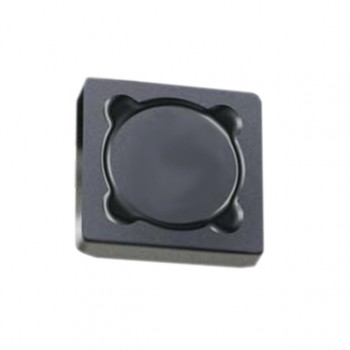

HOT 34L682C
