760308101311

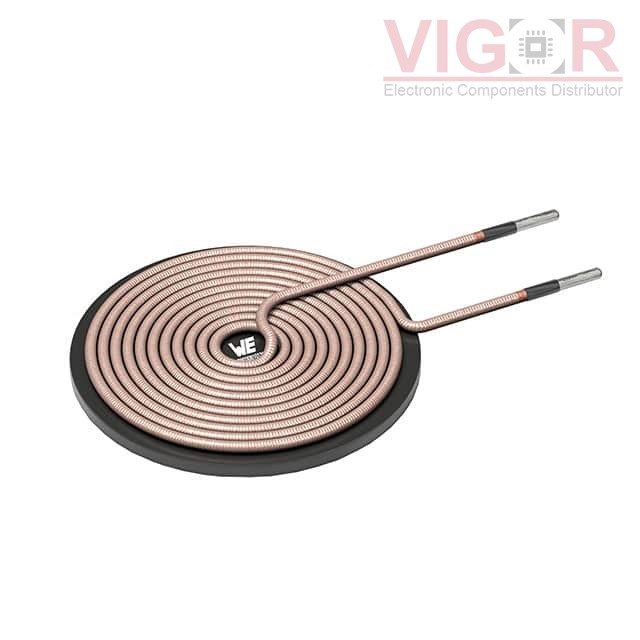

Image is for reference,
please contact us to get the real picture

Part No :: 760308101311

Manufacturer: Würth Elektronik Midcom

Description: WE-WPCC WIRELESS POWER CHARGING

Catalog: Wireless Charging Coils

DataSheet: 760308101311 PDF

Availability: 6 pieces

Unit Price: ~~$22.43000~~

Current price of 760308101311 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308101311 Specifications

Type	Description
Series:	WE-WPCC
Package:	Tray
Part Status:	Active
Function:	Transmitter
Type:	1 Coil, 1 Layer
Inductance:	5.8µH
Tolerance:	±10%
DC Resistance (DCR):	14mOhm
Q @ Freq:	220 @ 125kHz
Current Rating (Amps):	21A
Current - Saturation (Isat):	-
Frequency - Self Resonant:	13MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	2.76" Dia x 0.33" H (70.0mm x 8.5mm)
