WTM-12R5K-A6

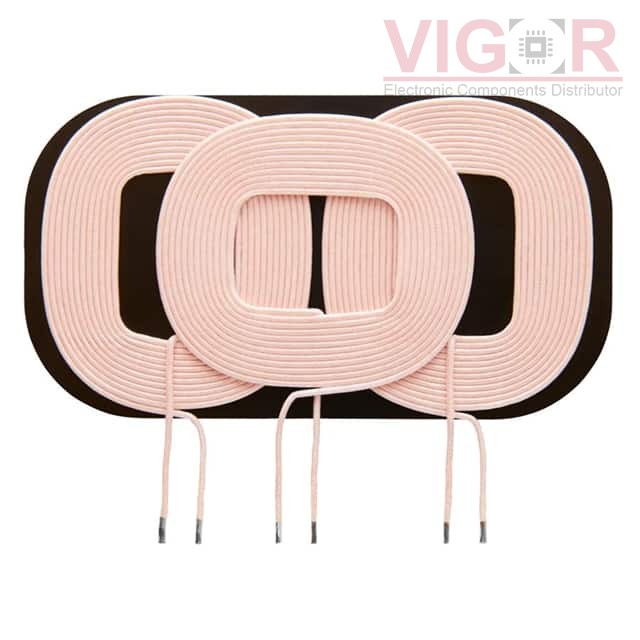

Image is for reference,
please contact us to get the real picture

Part No :: WTM-12R5K-A6

Manufacturer: Signal Transformer

Description: MULTI-COIL WIRELESS CHARGING COI

Catalog: Wireless Charging Coils

DataSheet: WTM-12R5K-A6 PDF

Availability: 98 pieces

Unit Price: ~~$13.02000~~

Current price of WTM-12R5K-A6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WTM-12R5K-A6 Specifications

Type	Description
Series:	WCC
Package:	Box
Part Status:	Active
Function:	Transmitter
Type:	3 Coil, 1 Layer
Inductance:	11.5µH, 12.5µH
Tolerance:	±10%
DC Resistance (DCR):	65mOhm Max
Q @ Freq:	-
Current Rating (Amps):	7A
Current - Saturation (Isat):	10A
Frequency - Self Resonant:	-
Operating Temperature:	-20°C ~ 85°C
Size / Dimension:	3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm)

Please confirm the specifications of the products when ordering.
