760308103204

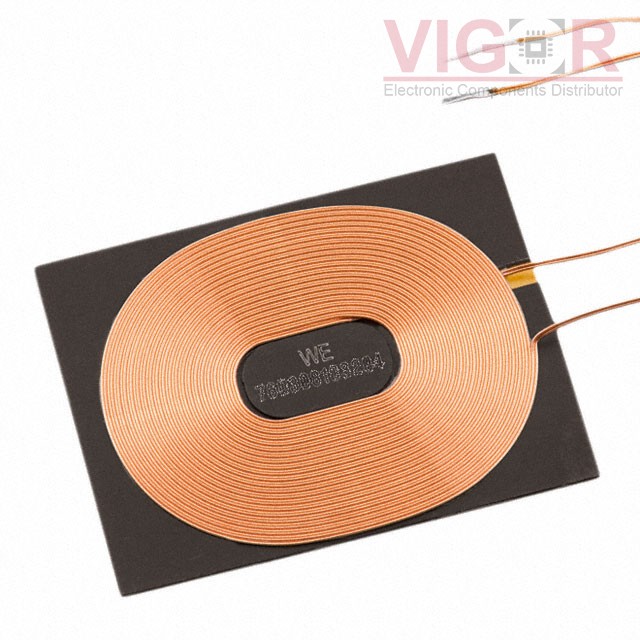

Image is for reference,
please contact us to get the real picture

Part No :: 760308103204

Manufacturer: Würth Elektronik Midcom

Description: RX 1 COIL 1 LAYER 16.7UH 1A

Catalog: Wireless Charging Coils

DataSheet: 760308103204 PDF

Availability: 61 pieces

Unit Price: ~~$6.05000~~

Current price of 760308103204 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308103204 Specifications

Type	Description
Series:	WE-WPCC
Package:	Tray
Part Status:	Active
Function:	Receiver
Type:	1 Coil, 1 Layer
Inductance:	16.7µH
Tolerance:	±10%
DC Resistance (DCR):	430mOhm
Q @ Freq:	32 @ 125kHz
Current Rating (Amps):	1A
Current - Saturation (Isat):	4A
Frequency - Self Resonant:	11MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm)

Please confirm the specifications of the products when ordering.
