760308101220

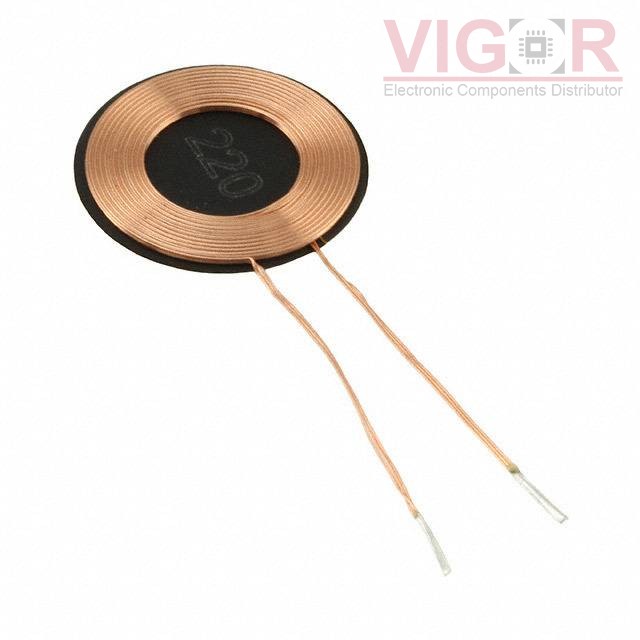

Image is for reference,
please contact us to get the real picture

Part No :: 760308101220

Manufacturer: Würth Elektronik Midcom

Description: RX 1 COIL 3 LAYER BIFILAR 12.6UH

Catalog: Wireless Charging Coils

DataSheet: 760308101220 PDF

Availability: 16 pieces

Unit Price: ~~$7.98000~~

Current price of 760308101220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308101220 Specifications

Type	Description
Series:	WE-WPCC
Package:	Box
Part Status:	Active
Function:	Receiver
Type:	1 Coil, 3 Layer, Bifilar
Inductance:	12.6µH
Tolerance:	±10%
DC Resistance (DCR):	340mOhm Max
Q @ Freq:	20 @ 125kHz
Current Rating (Amps):	1.1A
Current - Saturation (Isat):	2.5A
Frequency - Self Resonant:	19MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	0.67" Dia x 0.03" H (17.0mm x 0.8mm)
