AWCCA-50N50H40-C02-B

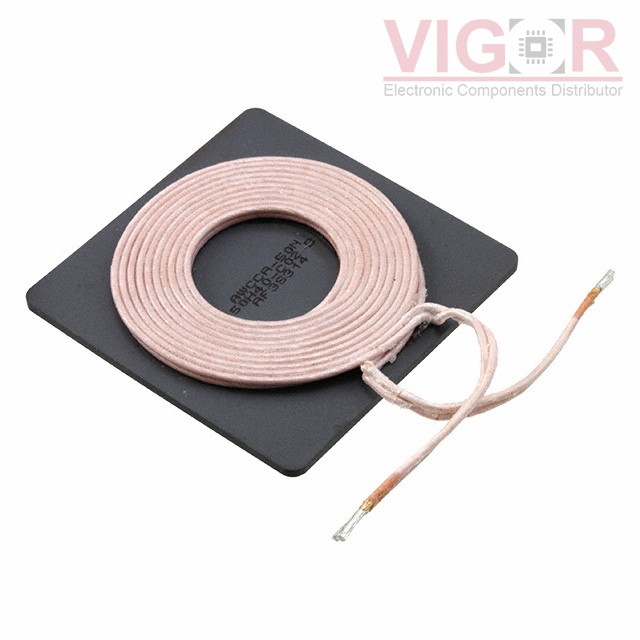

Image is for reference,
please contact us to get the real picture

Part No :: AWCCA-50N50H40-C02-B

Manufacturer: Abracon

Description: RX TX 1 COIL 1 LAYER 6.3UH 11.1A

Catalog: Wireless Charging Coils

DataSheet: AWCCA-50N50H40-C02-B PDF

Availability: 0 pieces

Unit Price: ~~$5.45279~~

Current price of AWCCA-50N50H40-C02-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AWCCA-50N50H40-C02-B Specifications

Type	Description
Series:	AWCCA-50N50
Package:	Box
Part Status:	Active
Function:	Receiver, Transmitter
Type:	1 Coil, 1 Layer
Inductance:	6.3µH
Tolerance:	±10%
DC Resistance (DCR):	19mOhm
Q @ Freq:	72 @ 100kHz
Current Rating (Amps):	11.1A
Current - Saturation (Isat):	40A
Frequency - Self Resonant:	5.7MHz
Operating Temperature:	-25°C ~ 85°C
Size / Dimension:	1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm)

Please confirm the specifications of the products when ordering.
