760308101107

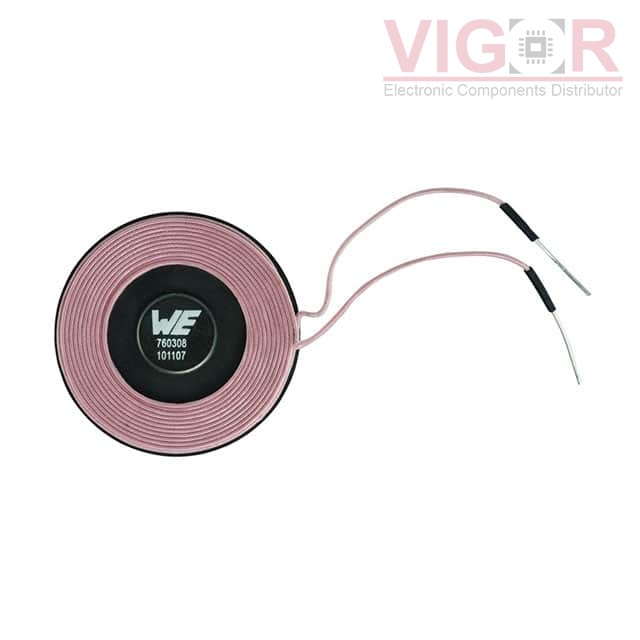

Image is for reference,
please contact us to get the real picture

Part No :: 760308101107

Manufacturer: Würth Elektronik Midcom

Description: WE-WPCC WIRELESS POWER CHARGING

Catalog: Wireless Charging Coils

DataSheet: 760308101107 PDF

Availability: 0 pieces

Unit Price: ~~$12.01000~~

Current price of 760308101107 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308101107 Specifications

Type	Description
Series:	WE-WPCC
Package:	Tray
Part Status:	Active
Function:	Transmitter
Type:	1 Coil, 1 Layer
Inductance:	24µH
Tolerance:	±10%
DC Resistance (DCR):	315mOhm
Q @ Freq:	55 @ 125kHz
Current Rating (Amps):	2A
Current - Saturation (Isat):	8A
Frequency - Self Resonant:	7.5MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	1.220" Dia x 0.098" H (31.00mm x 2.50mm)

Please confirm the specifications of the products when ordering.
