AWCCA-48R32H11-C01-B

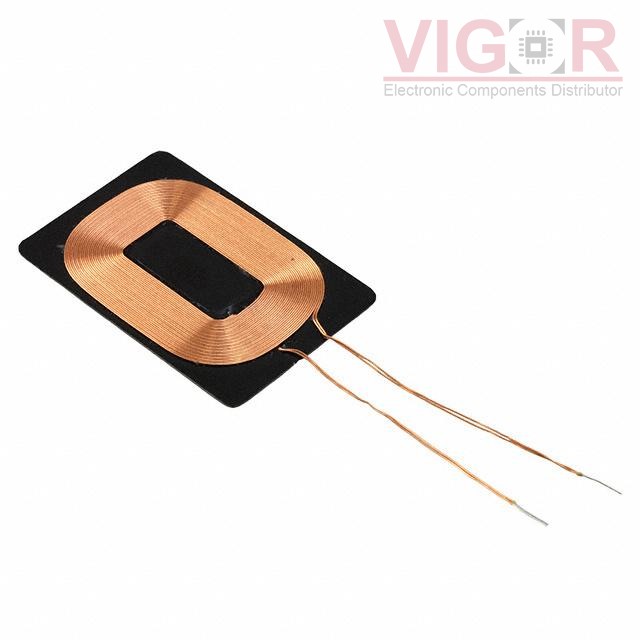

Image is for reference,
please contact us to get the real picture

Part No :: AWCCA-48R32H11-C01-B

Manufacturer: Abracon

Description: RX 1 COIL 1 LAYER 10.5UH 2.6A

Catalog: Wireless Charging Coils

DataSheet: AWCCA-48R32H11-C01-B PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AWCCA-48R32H11-C01-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AWCCA-48R32H11-C01-B Specifications

Type	Description
Series:	AWCCA-48R32
Package:	Box
Part Status:	Active
Function:	Receiver
Type:	1 Coil, 1 Layer
Inductance:	10.5µH
Tolerance:	±10%
DC Resistance (DCR):	190mOhm
Q @ Freq:	28 @ 100kHz
Current Rating (Amps):	2.6A
Current - Saturation (Isat):	15A
Frequency - Self Resonant:	11MHz
Operating Temperature:	-25°C ~ 85°C
Size / Dimension:	1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm)

Please confirm the specifications of the products when ordering.
