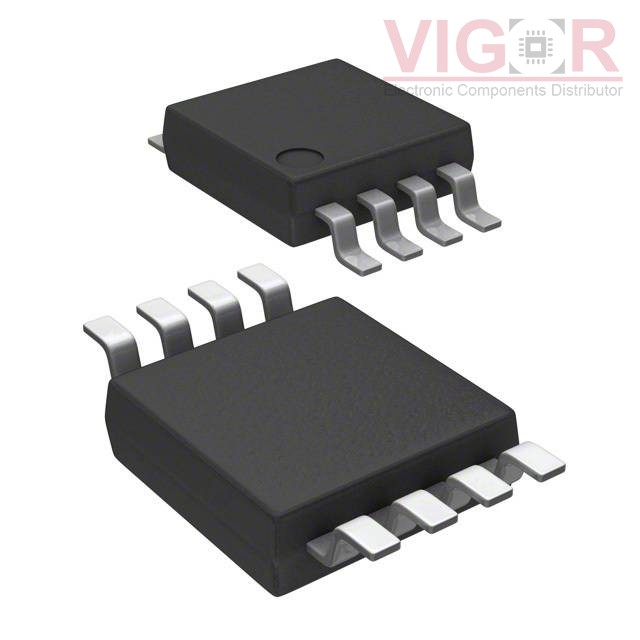

DS1100U-20+T&R

Part No :: DS1100U-20+T&R

Manufacturer: Maxim Integrated

VIGOR # :: 4817297

Description: IC DELAY LINE 5TAP 20NS 8UMAX

Catalog: Clock/Timing - Delay Lines

DataSheet: DS1100U-20+T&R PDF

Country of origin: -

Date code: -

DS1100U-20+T&R Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Taps/Steps:	5
Function:	Nonprogrammable
Delay to 1st Tap:	4ns
Tap Increment:	4 ns
Available Total Delays:	20ns
Number of Independent Delays:	1
Voltage - Supply:	4.75V ~ 5.25V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-uMAX
