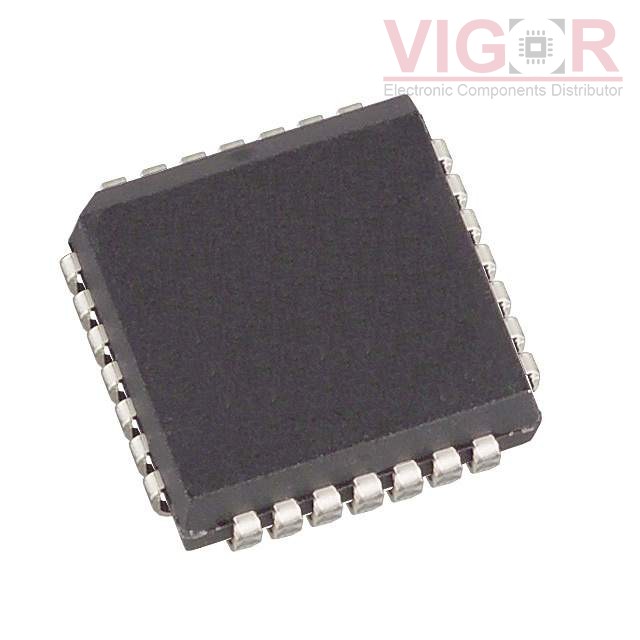

DS1685QN-5+

Part No :: DS1685QN-5+

Manufacturer: Maxim Integrated

VIGOR # :: 3688722

Description: IC RTC CLK/CALENDAR PAR 28-PLCC

Catalog: Clock/Timing - Real Time Clocks

DataSheet: DS1685QN-5+ PDF

Country of origin: -

Date code: -

DS1685QN-5+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Type:	Clock/Calendar
Features:	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size:	242B
Time Format:	HH:MM:SS (12/24 hr)
Date Format:	YY-MM-DD-dd
Interface:	Parallel
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Supply, Battery:	2.5V ~ 3.7V
Current - Timekeeping (Max):	3mA @ 5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	28-LCC (J-Lead)
Supplier Device Package:	28-PLCC (11.51x11.51)
