DS1685-5+

Part No :: DS1685-5+

Manufacturer: Maxim Integrated

VIGOR # :: 3688736

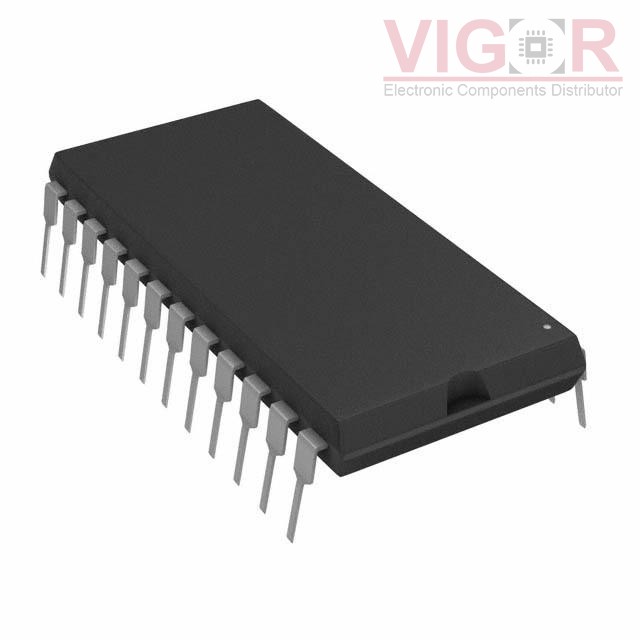

Description: IC RTC CLK/CALENDAR PAR 24-DIP

Catalog: Clock/Timing - Real Time Clocks

DataSheet: DS1685-5+ PDF

Country of origin: -

Date code: -

DS1685-5+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Type:	Clock/Calendar
Features:	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size:	242B
Time Format:	HH:MM:SS (12/24 hr)
Date Format:	YY-MM-DD-dd
Interface:	Parallel
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Supply, Battery:	2.5V ~ 3.7V
Current - Timekeeping (Max):	3mA @ 5V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Through Hole
Package / Case:	24-DIP (0.600", 15.24mm)
Supplier Device Package:	24-PDIP
