DS1685E-3

Part No :: DS1685E-3

Manufacturer: VIGOR

VIGOR # :: 3688811

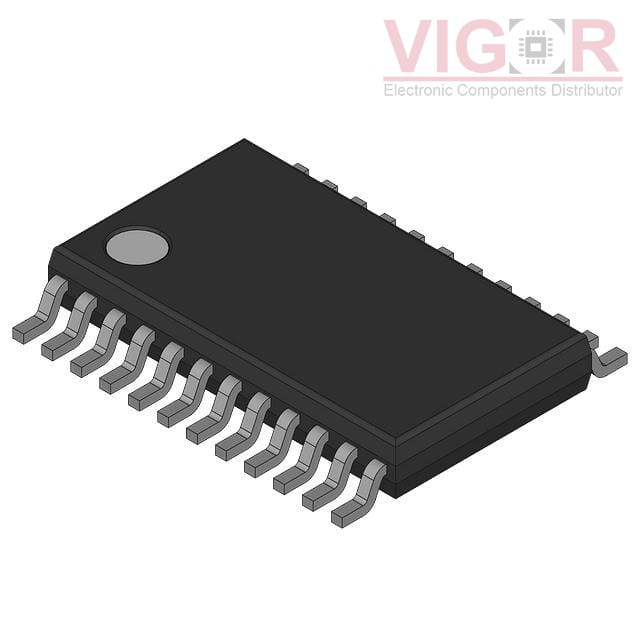

Description: DS1685 5V REAL-TIME CLOCK

Catalog: Clock/Timing - Real Time Clocks

DataSheet: DS1685E-3 PDF

Country of origin: -

Date code: -

DS1685E-3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Type:	Clock/Calendar
Features:	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size:	242B
Time Format:	HH:MM:SS (12/24 hr)
Date Format:	YY-MM-DD-dd
Interface:	Parallel
Voltage - Supply:	2.7V ~ 3.7V
Voltage - Supply, Battery:	2.5V ~ 3.7V
Current - Timekeeping (Max):	2mA @ 3V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Package / Case:	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	24-TSSOP
