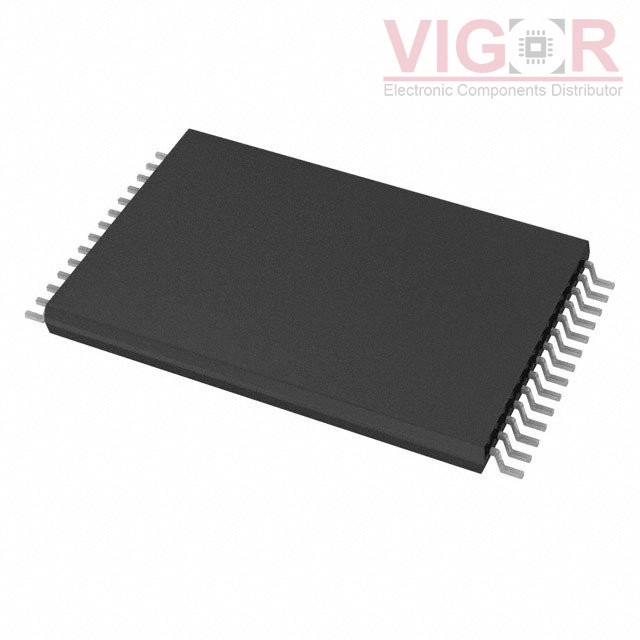

DS17285E-5

Part No :: DS17285E-5

Manufacturer: VIGOR

Description: DS17285 REAL-TIME CLOCK

Catalog: Clock/Timing - Real Time Clocks

DataSheet: DS17285E-5 PDF

Availability: 499 pieces

Current price of DS17285E-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DS17285E-5 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Obsolete
Type:	Clock/Calendar
Features:	Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Memory Size:	2KB
Time Format:	HH:MM:SS (12/24 hr)
Date Format:	YY-MM-DD-dd
Interface:	Parallel
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Supply, Battery:	2.5V ~ 3.7V
Current - Timekeeping (Max):	3mA @ 4.5V ~ 5.5V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Package / Case:	28-TSSOP (0.465", 11.80mm Width)
Supplier Device Package:	28-TSOP
