DS1685S-3+

Part No :: DS1685S-3+

Manufacturer: Maxim Integrated

VIGOR # :: 3689184

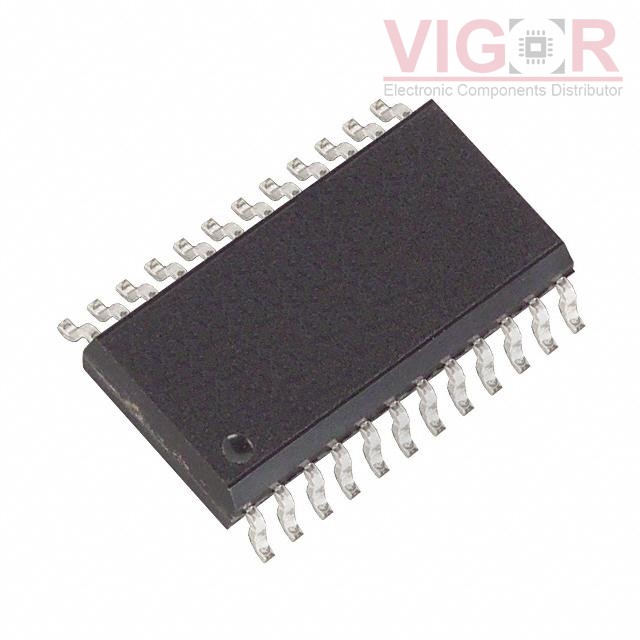

Description: IC RTC CLK/CALENDAR PAR 24-SOIC

Catalog: Clock/Timing - Real Time Clocks

DataSheet: DS1685S-3+ PDF

Country of origin: -

Date code: -

DS1685S-3+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Type:	Clock/Calendar
Features:	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size:	242B
Time Format:	HH:MM:SS (12/24 hr)
Date Format:	YY-MM-DD-dd
Interface:	Parallel
Voltage - Supply:	2.7V ~ 3.7V
Voltage - Supply, Battery:	2.5V ~ 3.7V
Current - Timekeeping (Max):	2mA @ 3V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
DS1685S-5+ Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-SOIC	DS1685S-3+ vs DS1685S-5+
DS1685SN-5+T&R Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-SOIC	DS1685S-3+ vs DS1685SN-5+T&R
DS1685S-5+T&R Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-SOIC	DS1685S-3+ vs DS1685S-5+T&R
DS1685SN-3+ Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-SOIC	DS1685S-3+ vs DS1685SN-3+
DS1685SN-5+ Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-SOIC	DS1685S-3+ vs DS1685SN-5+
DS1685S-3+T&R Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-SOIC	DS1685S-3+ vs DS1685S-3+T&R
