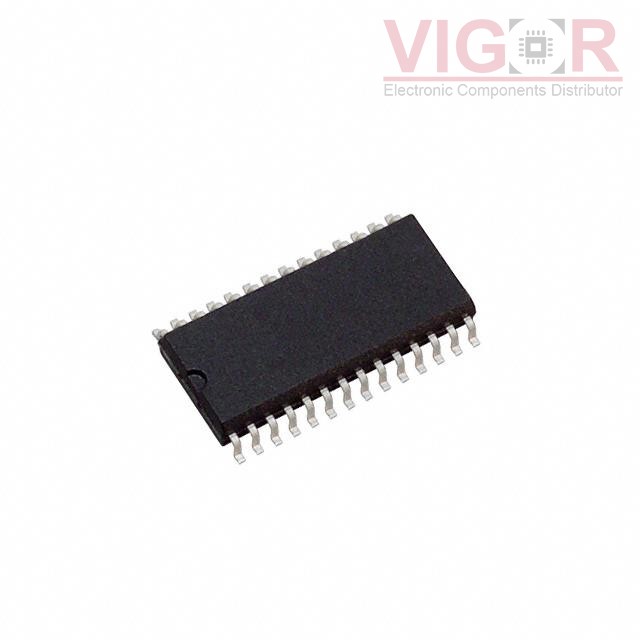

ADS8505IBDW

Part No :: ADS8505IBDW

Manufacturer: Texas Instruments

VIGOR # :: 3777990

Description: IC ADC 16BIT SAR 28SOIC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS8505IBDW PDF

Country of origin: -

Date code: -

ADS8505IBDW Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	16
Sampling Rate (Per Second):	250k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADS8504IBDWR Match 100%	Texas Instruments IC ADC 12BIT SAR 28SOIC	ADS8505IBDW vs ADS8504IBDWR
LTC1606ISW#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 16BIT SAR 28SOIC	ADS8505IBDW vs LTC1606ISW#TRPBF
LTC1606AISW#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 16BIT SAR 28SOIC	ADS8505IBDW vs LTC1606AISW#PBF
ADS8505IBDWR Match 100%	Texas Instruments IC ADC 16BIT SAR 28SOIC	ADS8505IBDW vs ADS8505IBDWR
ADS8505IDWR Match 100%	Texas Instruments IC ADC 16BIT SAR 28SOIC	ADS8505IBDW vs ADS8505IDWR
ADS8504IBDW Match 100%	Texas Instruments IC ADC 12BIT SAR 28SOIC	ADS8505IBDW vs ADS8504IBDW
