ADC14DS105AISQE/NOPB

Part No :: ADC14DS105AISQE/NOPB

Manufacturer: VIGOR

VIGOR # :: 3778811

Description: ADC, PROPRIETARY METHOD, 14 BIT,

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADC14DS105AISQE/NOPB PDF

Country of origin: -

Date code: -

ADC14DS105AISQE/NOPB Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Bits:	14
Sampling Rate (Per Second):	105M
Number of Inputs:	2
Input Type:	Differential
Data Interface:	LVDS - Serial
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	2.7V ~ 3.6V
Voltage - Supply, Digital:	2.7V ~ 3.6V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C

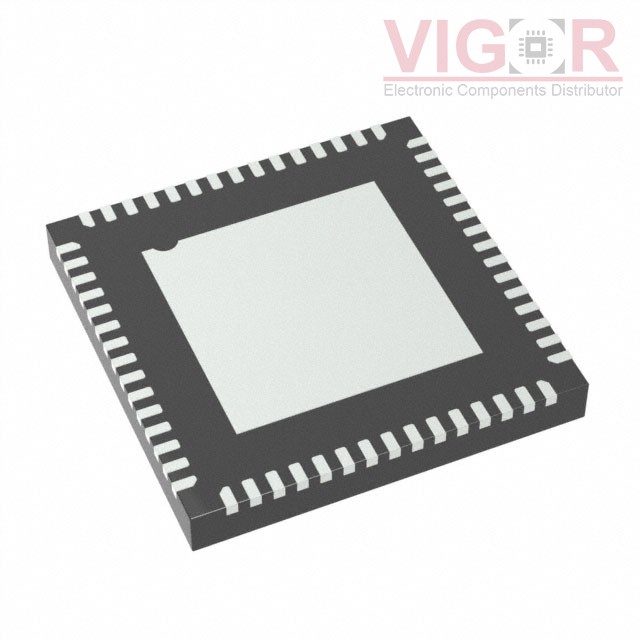

Package / Case:	60-WFQFN Exposed Pad
Supplier Device Package:	60-WQFN (9x9)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADC12DS105CISQ/NOPB Match 100%	VIGOR ADC12DS105 DUAL-CHANNEL, 12-BIT,	ADC14DS105AISQE/NOPB vs ADC12DS105CISQ/NOPB
ADC12DC105CISQ/NOPB Match 100%	Texas Instruments IC ADC 12BIT PIPELINED 60WQFN	ADC14DS105AISQE/NOPB vs ADC12DC105CISQ/NOPB
ADC12DS105CISQE/NOPB Match 100%	VIGOR ADC12DS105 DUAL-CHANNEL, 12-BIT,	ADC14DS105AISQE/NOPB vs ADC12DS105CISQE/NOPB
ADC14DS105CISQE/NOPB Match 100%	VIGOR ADC, PROPRIETARY METHOD, 14 BIT,	ADC14DS105AISQE/NOPB vs ADC14DS105CISQE/NOPB
ADC14DC105CISQE/NOPB Match 100%	VIGOR ADC, PROPRIETARY METHOD, 14 BIT,	ADC14DS105AISQE/NOPB vs ADC14DC105CISQE/NOPB
ADC12DC105CISQE/NOPB Match 100%	VIGOR ADC12DC105 DUAL-CHANNEL, 12-BIT,	ADC14DS105AISQE/NOPB vs ADC12DC105CISQE/NOPB

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4000

Shipped from

HK warehouse

Expected Shipping Date

Nov 08 - Nov 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$73.7800~~	~~$73.78~~

Current price of ADC14DS105AISQE/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
