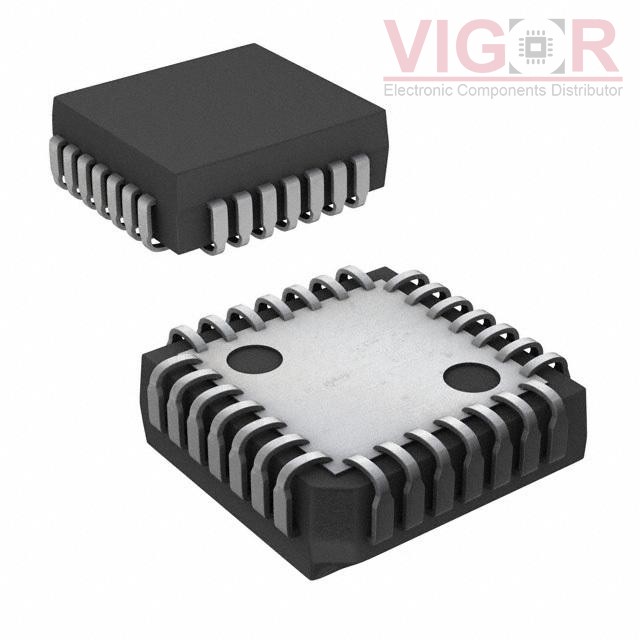

ADC0809CCV/NOPB

Part No :: ADC0809CCV/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 3780454

Description: IC ADC 8BIT SAR 28PLCC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADC0809CCV/NOPB PDF

Country of origin: -

Date code: -

ADC0809CCV/NOPB Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	8
Sampling Rate (Per Second):	10k
Number of Inputs:	8
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	MUX-S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External
Voltage - Supply, Analog:	4.5V ~ 6.5V
Voltage - Supply, Digital:	4.5V ~ 6.5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-LCC (J-Lead)
Supplier Device Package:	28-PLCC (11.51x11.51)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADC0809CCVX/NOPB Match 100%	Texas Instruments IC ADC 8BIT SAR 28PLCC	ADC0809CCV/NOPB vs ADC0809CCVX/NOPB
ADC0808CCVX/NOPB Match 100%	VIGOR ADC0808-N 8-BIT, 1-CH UP COMPATI	ADC0809CCV/NOPB vs ADC0808CCVX/NOPB
ADC0808CCVX Match 100%	VIGOR SAR ADC, 8-BIT, 8 CH, PARALLEL	ADC0809CCV/NOPB vs ADC0808CCVX
ADC0808CCV/NOPB Match 100%	Texas Instruments IC ADC 8BIT SAR 28PLCC	ADC0809CCV/NOPB vs ADC0808CCV/NOPB
ADC0809CCVX Match 100%	VIGOR SAR ADC, 8-BIT, 8 CH, PARALLEL	ADC0809CCV/NOPB vs ADC0809CCVX

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 120000

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.8100~~	~~$6.81~~
10	~~$6.1194~~	~~$61.19~~
35	~~$5.7856~~	~~$202.50~~
105	~~$5.0141~~	~~$526.48~~
525	~~$4.2684~~	~~$2 240.94~~
1015	~~$3.5999~~	~~$3 653.91~~
2520	~~$3.4199~~	~~$8 618.17~~

Current price of ADC0809CCV/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
