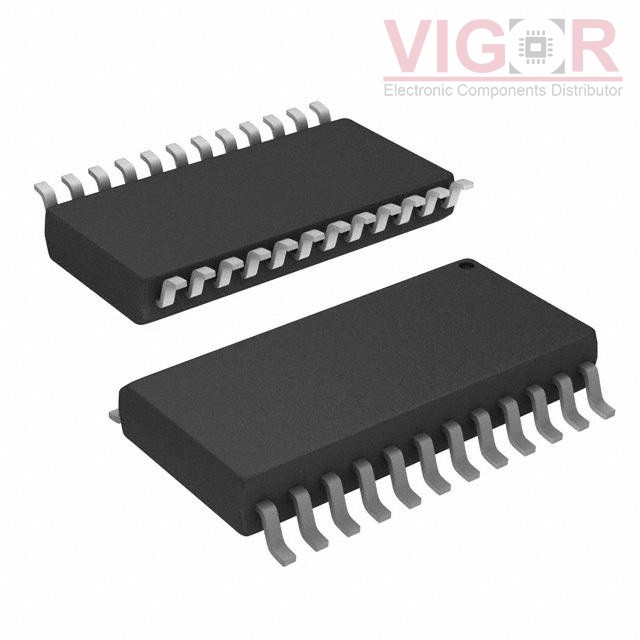

CS5506-BSZ

Part No :: CS5506-BSZ

Manufacturer: VIGOR

VIGOR # :: 3781198

Description: IC 20-BIT 4-CHANNEL ADC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: CS5506-BSZ PDF

Country of origin: -

Date code: -

CS5506-BSZ Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Bits:	20
Sampling Rate (Per Second):	100
Number of Inputs:	4
Input Type:	Pseudo-Differential
Data Interface:	SPI
Configuration:	MUX-ADC
Ratio - S/H:ADC:	-
Number of A/D Converters:	1
Architecture:	Sigma-Delta
Reference Type:	External, Internal
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	3.15V ~ 5.5V
Features:	Selectable Address
Operating Temperature:	-40°C ~ 85°C
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
Mounting Type:	Surface Mount
