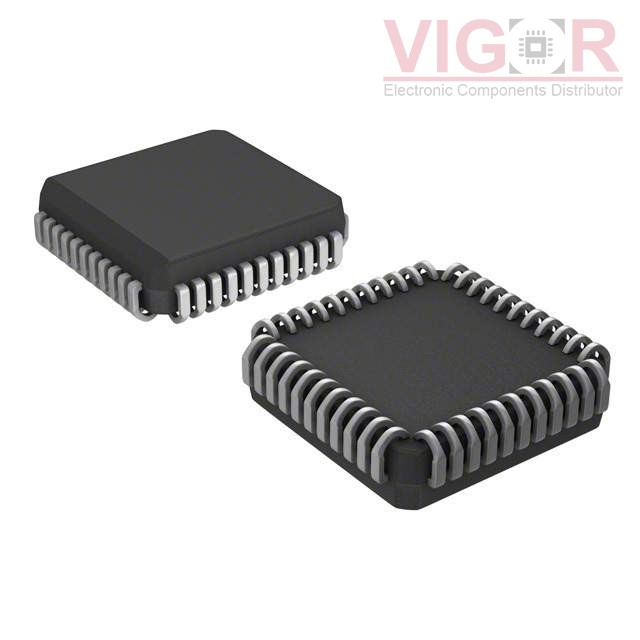

ICL7109EQH+TD

Part No :: ICL7109EQH+TD

Manufacturer: Maxim Integrated

VIGOR # :: 3781679

Description: IC ADC 12BIT DUAL SLOPE 44PLCC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ICL7109EQH+TD PDF

Country of origin: -

Date code: -

ICL7109EQH+TD Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Bits:	12
Sampling Rate (Per Second):	30
Number of Inputs:	1
Input Type:	Differential
Data Interface:	Parallel
Configuration:	ADC
Ratio - S/H:ADC:	-
Number of A/D Converters:	1
Architecture:	Dual Slope
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	±5V
Features:	-
Operating Temperature:	0°C ~ 70°C
Package / Case:	44-LCC (J-Lead)
Supplier Device Package:	44-PLCC (16.59x16.59)
Mounting Type:	Surface Mount
