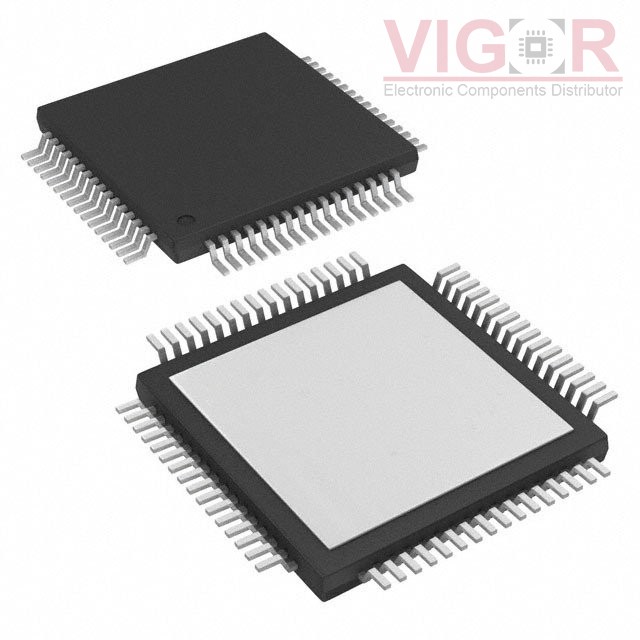

ADS5542IPAP

Part No :: ADS5542IPAP

Manufacturer: Texas Instruments

VIGOR # :: 3782501

Description: IC ADC 14BIT PIPELINED 64HTQFP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS5542IPAP PDF

Country of origin: -

Date code: -

ADS5542IPAP Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Number of Bits:	14
Sampling Rate (Per Second):	80M
Number of Inputs:	1
Input Type:	Differential
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	Pipelined
Reference Type:	Internal
Voltage - Supply, Analog:	3V ~ 3.6V
Voltage - Supply, Digital:	3V ~ 3.6V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	64-PowerTQFP
Supplier Device Package:	64-HTQFP (10x10)
Mounting Type:	Surface Mount
