ADS7800AH

Part No :: ADS7800AH

Manufacturer: Texas Instruments

VIGOR # :: 3784028

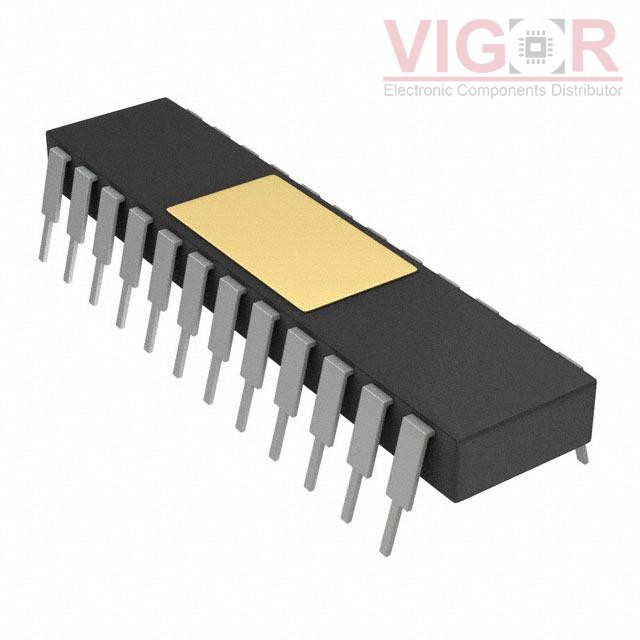

Description: IC ADC 12BIT SAR 24CDIP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS7800AH PDF

Country of origin: -

Date code: -

ADS7800AH Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	12
Sampling Rate (Per Second):	333k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	Internal
Voltage - Supply, Analog:	5V, -11.4V ~ 16.5V
Voltage - Supply, Digital:	5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	24-CDIP (0.300", 7.62mm)
Supplier Device Package:	24-CDIP
Mounting Type:	Through Hole
