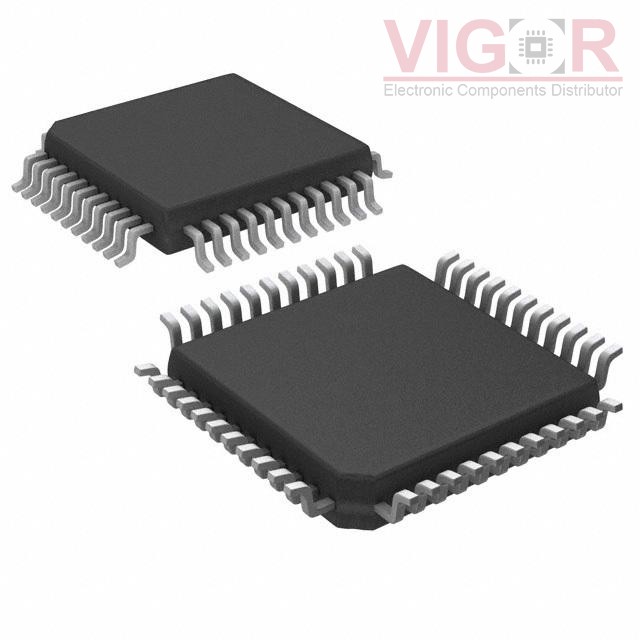

AD7864BSZ-1

Part No :: AD7864BSZ-1

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3784302

Description: IC ADC 12BIT SAR 44MQFP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: AD7864BSZ-1 PDF

Country of origin: -

Date code: -

AD7864BSZ-1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Number of Bits:	12
Sampling Rate (Per Second):	520k
Number of Inputs:	4
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	S/H-MUX-ADC
Ratio - S/H:ADC:	4:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C
Package / Case:	44-QFP
Supplier Device Package:	44-MQFP (10x10)
Mounting Type:	Surface Mount
