LTC2296IUP#PBF

Part No :: LTC2296IUP#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3786165

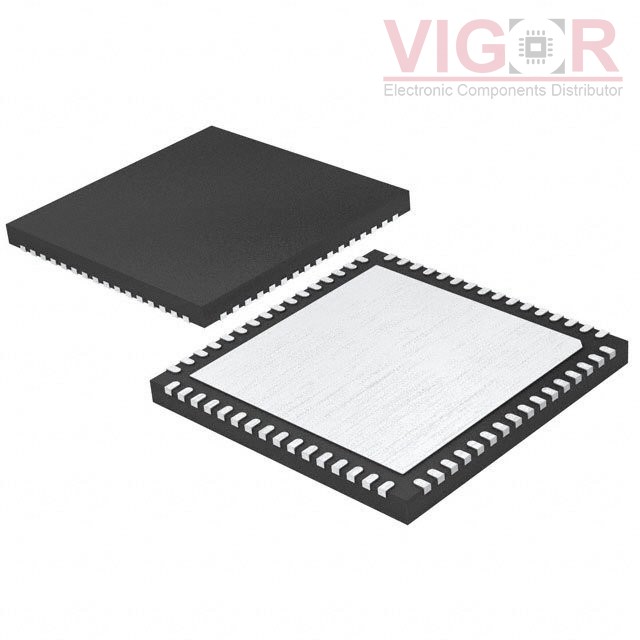

Description: IC ADC 14BIT PIPELINED 64QFN

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: LTC2296IUP#PBF PDF

Country of origin: -

Date code: -

LTC2296IUP#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	14
Sampling Rate (Per Second):	25M
Number of Inputs:	2
Input Type:	Differential, Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	2.7V ~ 3.4V
Voltage - Supply, Digital:	2.7V ~ 3.4V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C
Package / Case:	64-WFQFN Exposed Pad
Supplier Device Package:	64-QFN (9x9)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
LTC2140IUP-12#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT PIPELINED 64QFN	LTC2296IUP#PBF vs LTC2140IUP-12#TRPBF
LTC2140IUP-14#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 14BIT PIPELINED 64QFN	LTC2296IUP#PBF vs LTC2140IUP-14#PBF
LTC2291IUP#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT PIPELINED 64QFN	LTC2296IUP#PBF vs LTC2291IUP#PBF
LTC2286IUP#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 10BIT PIPELINED 64QFN	LTC2296IUP#PBF vs LTC2286IUP#TRPBF
LTC2140IUP-14#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 14BIT PIPELINED 64QFN	LTC2296IUP#PBF vs LTC2140IUP-14#TRPBF
LTC2286IUP#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 10BIT PIPELINED 64QFN	LTC2296IUP#PBF vs LTC2286IUP#PBF
