ADS114S08BIRHBT

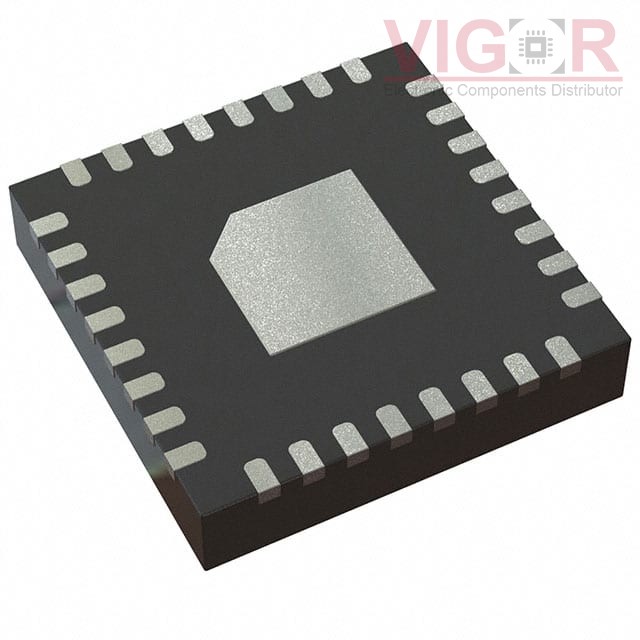

Image is for reference,
please contact us to get the real picture

Part No :: ADS114S08BIRHBT

Manufacturer: Texas Instruments

Description: IC ADC 16BIT SIGMA-DELTA 32VQFN

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS114S08BIRHBT PDF

Availability: 100 pieces

Unit Price: ~~$10.09000~~

Current price of ADS114S08BIRHBT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADS114S08BIRHBT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Bits:	16
Sampling Rate (Per Second):	4k
Number of Inputs:	-
Input Type:	Differential, Pseudo-Differential, Single Ended
Data Interface:	SPI
Configuration:	MUX-PGA-ADC
Ratio - S/H:ADC:	-
Number of A/D Converters:	1
Architecture:	Sigma-Delta
Reference Type:	External, Internal
Voltage - Supply, Analog:	±2.5V, 2.7V ~ 5.25V
Voltage - Supply, Digital:	2.7V ~ 3.6V
Features:	PGA, Temperature Sensor
Operating Temperature:	-40°C ~ 125°C
Package / Case:	32-VFQFN Exposed Pad
Supplier Device Package:	32-VQFN (5x5)
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
