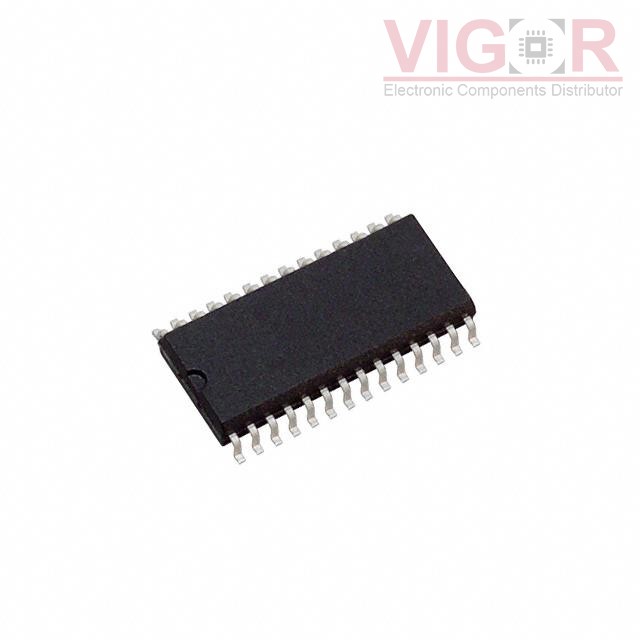

ADS8505IDWG4

Part No :: ADS8505IDWG4

Manufacturer: Texas Instruments

VIGOR # :: 3786744

Description: IC ADC 16BIT SAR 28SOIC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS8505IDWG4 PDF

Country of origin: -

Date code: -

ADS8505IDWG4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	16
Sampling Rate (Per Second):	250k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC
Mounting Type:	Surface Mount
