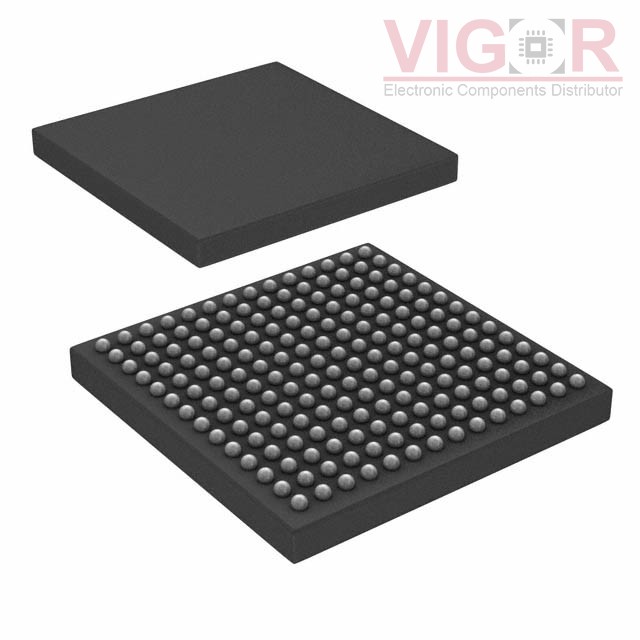

ADS54T04IZAYR

Part No :: ADS54T04IZAYR

Manufacturer: Texas Instruments

VIGOR # :: 3786984

Description: IC ADC 12BIT PIPELINED 196NFBGA

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS54T04IZAYR PDF

Country of origin: -

Date code: -

ADS54T04IZAYR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Bits:	12
Sampling Rate (Per Second):	500M
Number of Inputs:	2
Input Type:	Differential
Data Interface:	LVDS - Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	Internal
Voltage - Supply, Analog:	1.7V ~ 1.9V, 3.15V ~ 3.45V
Voltage - Supply, Digital:	1.7V ~ 1.9V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C
Package / Case:	196-LFBGA
Supplier Device Package:	196-NFBGA (12x12)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADS5407IZAY Match 100%	VIGOR ADS5407 DUAL-CHANNEL, 12-BIT, 50	ADS54T04IZAYR vs ADS5407IZAY
ADS5404IZAYR Match 100%	Texas Instruments IC ADC 12BIT PIPELINED 196NFBGA	ADS54T04IZAYR vs ADS5404IZAYR
ADS5407IZAYR Match 100%	Texas Instruments IC ADC 12BIT PIPELINED 196NFBGA	ADS54T04IZAYR vs ADS5407IZAYR
ADS54T04IZAY Match 100%	Texas Instruments IC ADC 12BIT PIPELINED 196NFBGA	ADS54T04IZAYR vs ADS54T04IZAY
ADS5404IZAY Match 100%	VIGOR ADS5404 DUAL-CHANNEL, 12-BIT, 50	ADS54T04IZAYR vs ADS5404IZAY

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 9405

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$321.4750~~	~~$321.48~~
1000	~~$297.6620~~	~~$297 662.04~~

Current price of ADS54T04IZAYR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
