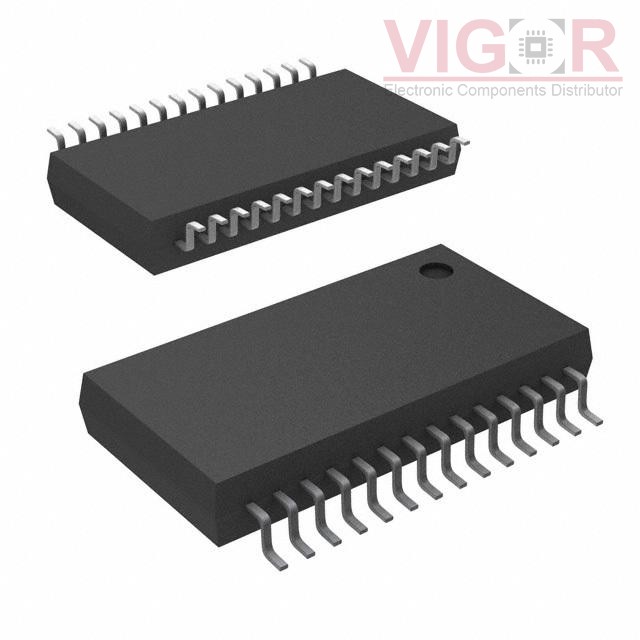

ADS8509IBDBR

Part No :: ADS8509IBDBR

Manufacturer: VIGOR

VIGOR # :: 3788729

Description: SAR ADC, 16-BIT, SERIAL ACCESS

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS8509IBDBR PDF

Country of origin: -

Date code: -

ADS8509IBDBR Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Bits:	16
Sampling Rate (Per Second):	250k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	SPI
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	28-SSOP
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADS8505IBDBG4 Match 100%	Texas Instruments IC ADC 16BIT SAR 28SSOP	ADS8509IBDBR vs ADS8505IBDBG4
ADS8519IBDBG4 Match 100%	Texas Instruments IC ADC 16BIT SAR 28SSOP	ADS8509IBDBR vs ADS8519IBDBG4
LTC1606IG#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 16BIT SAR 28SSOP	ADS8509IBDBR vs LTC1606IG#PBF
ADS8505IBDBRG4 Match 100%	Texas Instruments IC ADC 16BIT SAR 28SSOP	ADS8509IBDBR vs ADS8505IBDBRG4
ADS8515IDBR Match 100%	Texas Instruments IC ADC 16BIT SAR 28SSOP	ADS8509IBDBR vs ADS8515IDBR
ADS8509IBDB Match 100%	Texas Instruments IC ADC 16BIT SAR 28SSOP	ADS8509IBDBR vs ADS8509IBDB
