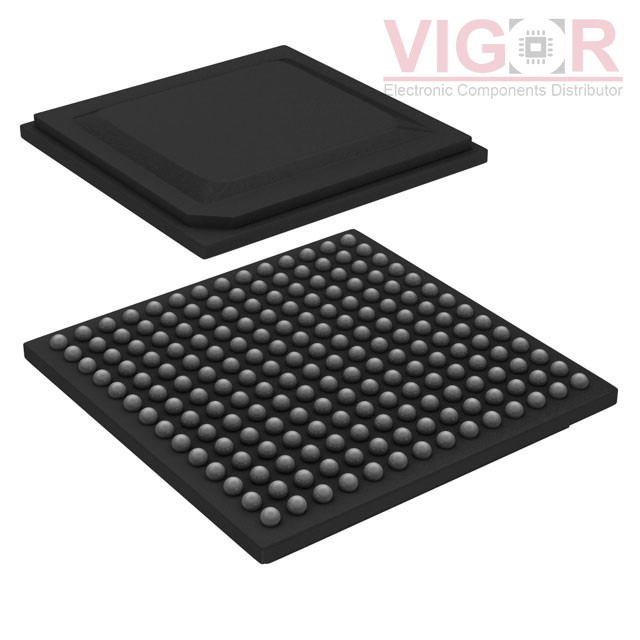

AD9689BBPZ-2600

Part No :: AD9689BBPZ-2600

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3788746

Description: IC ADC 14BIT PIPELINED 196BGA-ED

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: AD9689BBPZ-2600 PDF

Country of origin: -

Date code: -

AD9689BBPZ-2600 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Number of Bits:	14
Sampling Rate (Per Second):	2.6G
Number of Inputs:	2
Input Type:	Differential
Data Interface:	JESD204B
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	0.95V ~ 1V, 1.85V ~ 1.95V, 2.44V ~ 2.56V
Voltage - Supply, Digital:	0.95V ~ 1V, 1.85V ~ 1.95V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	196-LFBGA Exposed Pad
Supplier Device Package:	196-BGA-ED (12x12)
Mounting Type:	Surface Mount
