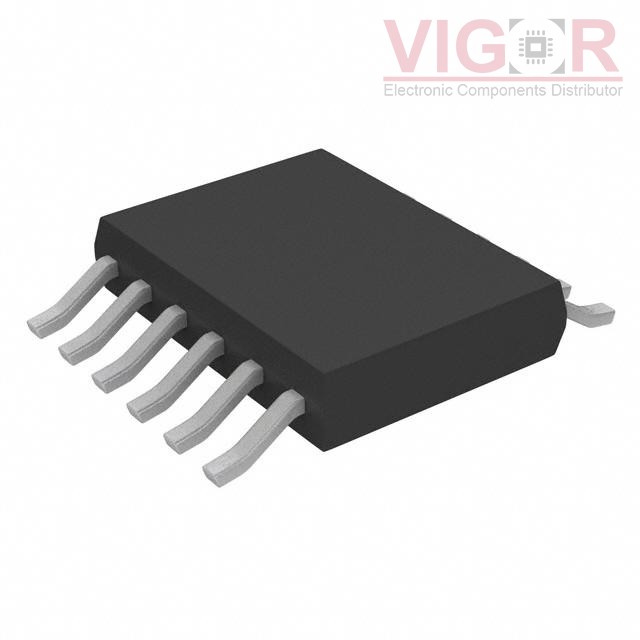

LTC2301CMS#TRPBF

Part No :: LTC2301CMS#TRPBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3788821

Description: IC ADC 12BIT SAR 12MSOP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: LTC2301CMS#TRPBF PDF

Country of origin: -

Date code: -

LTC2301CMS#TRPBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Bits:	12
Sampling Rate (Per Second):	14k
Number of Inputs:	1
Input Type:	Differential, Single Ended
Data Interface:	I²C
Configuration:	MUX-S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	Selectable Address
Operating Temperature:	0°C ~ 70°C
Package / Case:	12-TSSOP (0.118", 3.00mm Width)
Supplier Device Package:	12-MSOP
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
LTC2301HMS#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT SAR 12MSOP	LTC2301CMS#TRPBF vs LTC2301HMS#TRPBF
LTC2301IMS#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT SAR 12MSOP	LTC2301CMS#TRPBF vs LTC2301IMS#PBF
LTC2301IMS#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT SAR 12MSOP	LTC2301CMS#TRPBF vs LTC2301IMS#TRPBF
LTC2301HMS#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT SAR 12MSOP	LTC2301CMS#TRPBF vs LTC2301HMS#PBF
LTC2301CMS#PBF Match 100%	Linear Technology (Analog Devices, Inc.) IC ADC 12BIT SAR 12MSOP	LTC2301CMS#TRPBF vs LTC2301CMS#PBF

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3050

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.8650~~	~~$2.86~~
2500	~~$2.8004~~	~~$7 000.95~~

Current price of LTC2301CMS#TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
