MAX19505ETM+

Part No :: MAX19505ETM+

Manufacturer: Maxim Integrated

VIGOR # :: 3788835

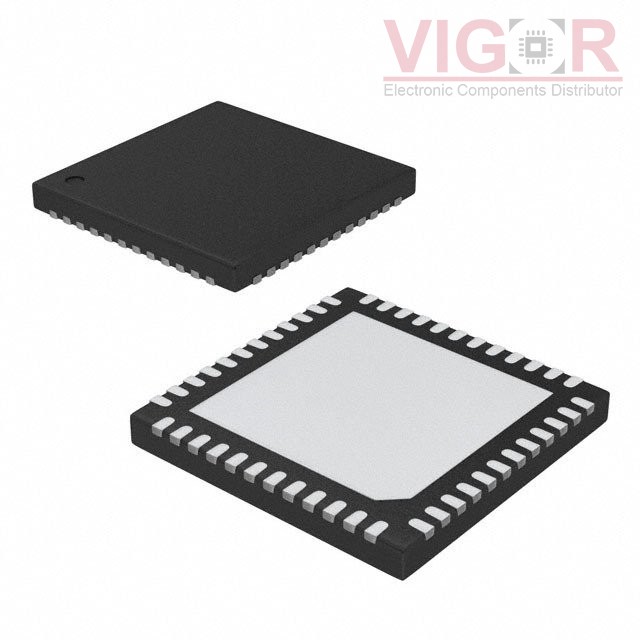

Description: IC ADC 8BIT PIPELINED 48TQFN

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: MAX19505ETM+ PDF

Country of origin: -

Date code: -

MAX19505ETM+ Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Number of Bits:	8
Sampling Rate (Per Second):	65M
Number of Inputs:	2
Input Type:	Differential, Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	1.7V ~ 1.9V, 2.3V ~ 3.5V
Voltage - Supply, Digital:	1.7V ~ 1.9V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C
Package / Case:	48-WFQFN Exposed Pad
Supplier Device Package:	48-TQFN (7x7)
Mounting Type:	Surface Mount
