ADS58H40IZCRR

Part No :: ADS58H40IZCRR

Manufacturer: Texas Instruments

VIGOR # :: 3788882

Description: IC ADC 14BIT PIPELINED 144NFBGA

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS58H40IZCRR PDF

Country of origin: -

Date code: -

ADS58H40IZCRR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Bits:	14
Sampling Rate (Per Second):	250M
Number of Inputs:	4
Input Type:	Differential
Data Interface:	LVDS - Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	Internal
Voltage - Supply, Analog:	1.8V ~ 2V, 3.15V ~ 3.45V
Voltage - Supply, Digital:	1.7V ~ 2V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C

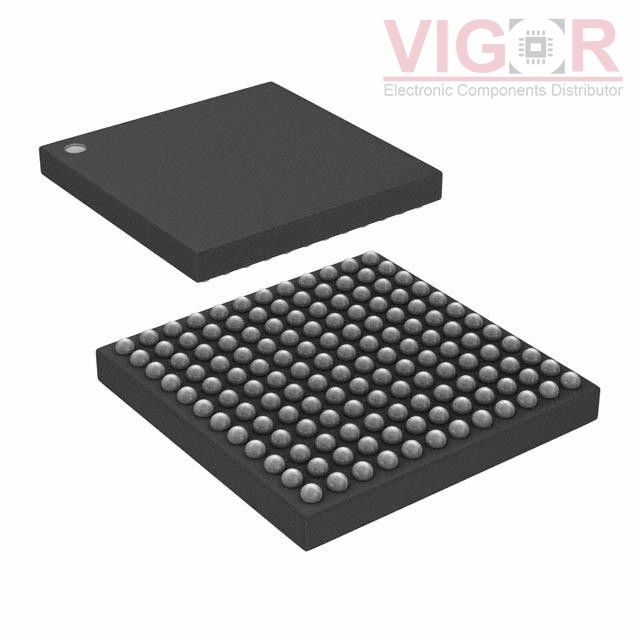

Package / Case:	144-LFBGA
Supplier Device Package:	144-NFBGA (10x10)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADS4449IZCR Match 100%	VIGOR ADS4449 QUAD-CHANNEL, 14-BIT, 25	ADS58H40IZCRR vs ADS4449IZCR
ADS4449IZCRR Match 100%	Texas Instruments IC ADC 14BIT PIPELINED 144NFBGA	ADS58H40IZCRR vs ADS4449IZCRR
ADS58H40IZCR Match 100%	VIGOR ADS58H40 QUAD-CHANNEL, 14-BIT, 2	ADS58H40IZCRR vs ADS58H40IZCR
ADS58H43IZCRR Match 100%	Texas Instruments IC ADC 14BIT PIPELINED 144NFBGA	ADS58H40IZCRR vs ADS58H43IZCRR
ADS58H43IZCR Match 100%	VIGOR ADS58H43 QUAD-CHANNEL, 14-BIT, 2	ADS58H40IZCRR vs ADS58H43IZCR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1109

Shipped from

HK warehouse

Expected Shipping Date

Sep 07 - Sep 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$279.2073~~	~~$279.21~~
1000	~~$258.5253~~	~~$258 525.28~~

Current price of ADS58H40IZCRR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
