ADS7806PB

Part No :: ADS7806PB

Manufacturer: Texas Instruments

VIGOR # :: 4876461

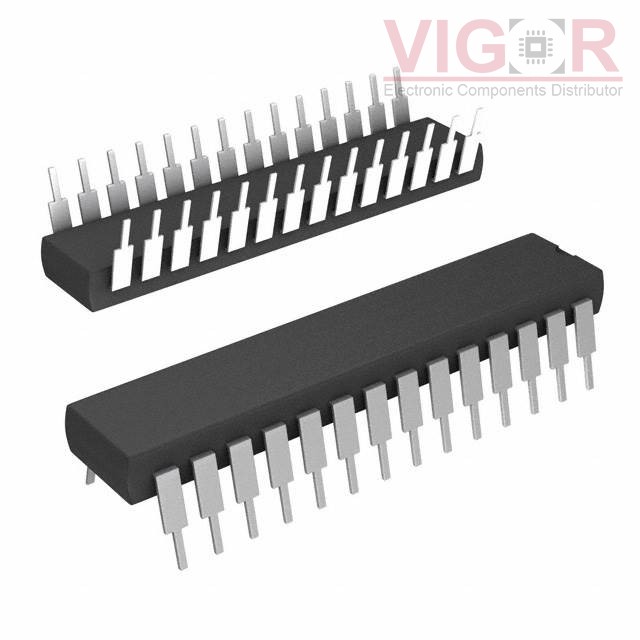

Description: IC ADC 12BIT SAR 28DIP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS7806PB PDF

Country of origin: -

Date code: -

ADS7806PB Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Sampling Rate (Per Second):	40k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	SPI, Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-DIP (0.300", 7.62mm)
Supplier Device Package:	28-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
ADS7807P Match 100%	VIGOR SAR ADC, 16-BIT, SERIAL/PARALLEL	ADS7806PB vs ADS7807P
ADS7807PB Match 100%	VIGOR SAR ADC, 16-BIT, SERIAL/PARALLEL	ADS7806PB vs ADS7807PB
ADS7806PG4 Match 100%	Texas Instruments IC ADC 12BIT SAR 28DIP	ADS7806PB vs ADS7806PG4
ADS7807PG4 Match 100%	Texas Instruments IC ADC 16BIT SAR 28DIP	ADS7806PB vs ADS7807PG4
ADS7806P Match 100%	Texas Instruments IC ADC 12BIT SAR 28DIP	ADS7806PB vs ADS7806P
ADS7807PBG4 Match 100%	Texas Instruments IC ADC 16BIT SAR 28DIP	ADS7806PB vs ADS7807PBG4
