HMCAD1102

Part No :: HMCAD1102

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 4877016

Description: IC ADC 12BIT PIPELINED 64QFN

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: HMCAD1102 PDF

Country of origin: -

Date code: -

HMCAD1102 Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Obsolete
Number of Bits:	12
Sampling Rate (Per Second):	65M
Number of Inputs:	8
Input Type:	Differential
Data Interface:	LVDS - Serial
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	8
Architecture:	Pipelined
Reference Type:	Internal
Voltage - Supply, Analog:	1.7V ~ 2V
Voltage - Supply, Digital:	1.7V ~ 2V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C

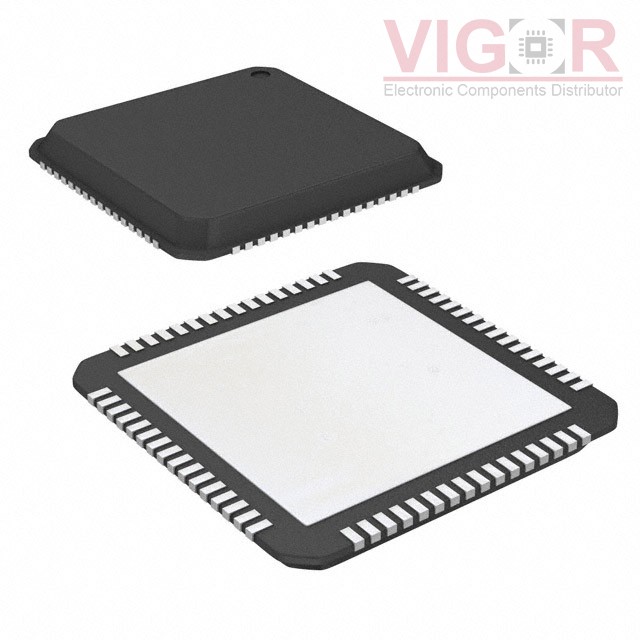

Package / Case:	64-VFQFN Exposed Pad
Supplier Device Package:	64-QFN (9x9)
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 350

Shipped from

HK warehouse

Expected Shipping Date

Feb 05 - Feb 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of HMCAD1102 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
