TLC541INSG4

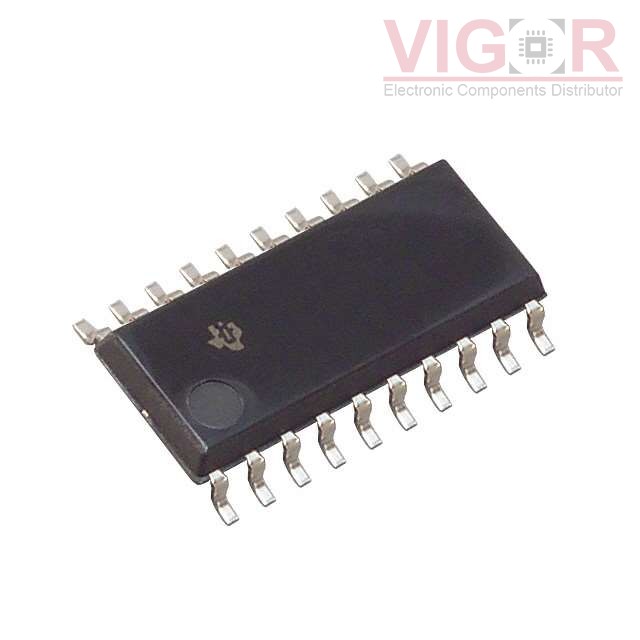

Image is for reference,
please contact us to get the real picture

Part No :: TLC541INSG4

Manufacturer: Texas Instruments

Description: IC ADC 8BIT SAR 20SO

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

Shipped from: HK warehouse

Expected Shipping Date: Oct 15 - Oct 19 2025

DataSheet: TLC541INSG4 PDF

Availability: 5054 pieces

Unit Price: ~~$0.00000~~

Current price of TLC541INSG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLC541INSG4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Sampling Rate (Per Second):	40k
Number of Inputs:	11
Input Type:	Single Ended
Data Interface:	SPI
Configuration:	MUX-S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	Selectable Address
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	20-SO
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
