ADC14DS105AISQ/NOPB

Part No :: ADC14DS105AISQ/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4877695

Description: IC ADC 14BIT PIPELINED 60WQFN

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADC14DS105AISQ/NOPB PDF

Country of origin: -

Date code: -

ADC14DS105AISQ/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Number of Bits:	14
Sampling Rate (Per Second):	105M
Number of Inputs:	2
Input Type:	Differential
Data Interface:	LVDS - Serial
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	2
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	2.7V ~ 3.6V
Voltage - Supply, Digital:	2.7V ~ 3.6V
Features:	Simultaneous Sampling
Operating Temperature:	-40°C ~ 85°C

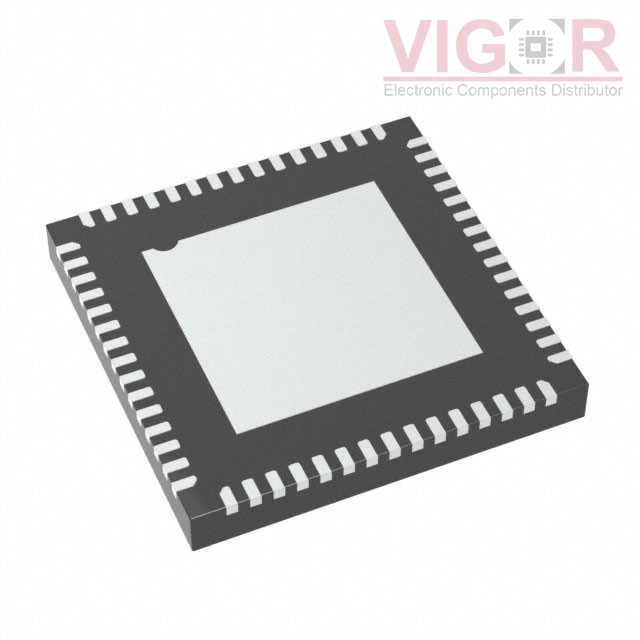

Package / Case:	60-WFQFN Exposed Pad
Supplier Device Package:	60-WQFN (9x9)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
ADC12DC105CISQ/NOPB Match 100%	Texas Instruments IC ADC 12BIT PIPELINED 60WQFN	ADC14DS105AISQ/NOPB vs ADC12DC105CISQ/NOPB
ADC12DS105CISQE/NOPB Match 100%	VIGOR ADC12DS105 DUAL-CHANNEL, 12-BIT,	ADC14DS105AISQ/NOPB vs ADC12DS105CISQE/NOPB
ADC14DS105CISQE/NOPB Match 100%	VIGOR ADC, PROPRIETARY METHOD, 14 BIT,	ADC14DS105AISQ/NOPB vs ADC14DS105CISQE/NOPB
ADC14DC105CISQE/NOPB Match 100%	VIGOR ADC, PROPRIETARY METHOD, 14 BIT,	ADC14DS105AISQ/NOPB vs ADC14DC105CISQE/NOPB
ADC12DC105CISQE/NOPB Match 100%	VIGOR ADC12DC105 DUAL-CHANNEL, 12-BIT,	ADC14DS105AISQ/NOPB vs ADC12DC105CISQE/NOPB
ADC11DS105CISQE/NOPB Match 100%	VIGOR ADC11DS105 DUAL-CHANNEL, 11-BIT,	ADC14DS105AISQ/NOPB vs ADC11DS105CISQE/NOPB
