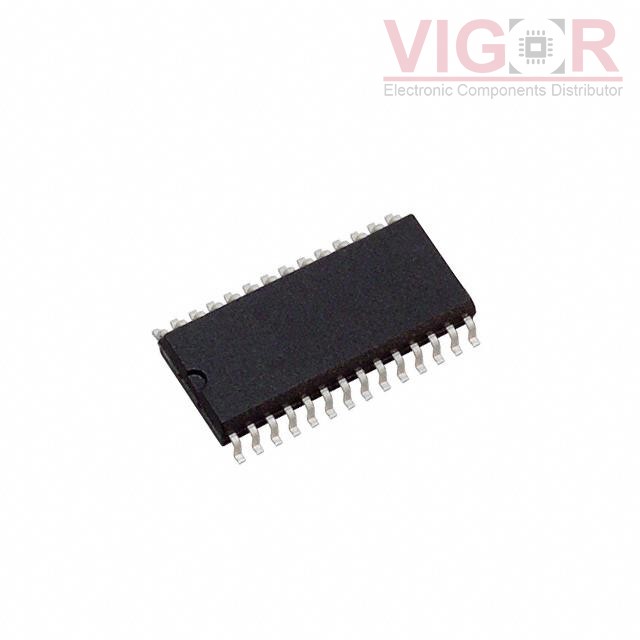

ADS7806U

Part No :: ADS7806U

Manufacturer: Texas Instruments

VIGOR # :: 4877860

Description: IC ADC 12BIT SAR 28SOIC

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: ADS7806U PDF

Country of origin: -

Date code: -

ADS7806U Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Sampling Rate (Per Second):	40k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	SPI, Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC
Mounting Type:	Surface Mount
