MAX1156AEUP+

Part No :: MAX1156AEUP+

Manufacturer: Maxim Integrated

VIGOR # :: 4877928

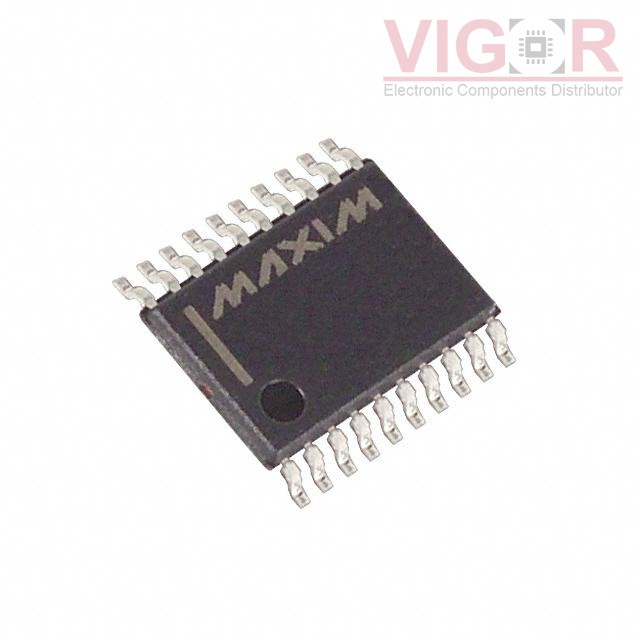

Description: IC ADC 14BIT 135KSPS 20-TSSOP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: MAX1156AEUP+ PDF

Country of origin: -

Date code: -

MAX1156AEUP+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	14
Sampling Rate (Per Second):	135k
Number of Inputs:	1
Input Type:	Single Ended
Data Interface:	Parallel
Configuration:	ADC
Ratio - S/H:ADC:	0:1
Number of A/D Converters:	1
Architecture:	SAR
Reference Type:	External, Internal
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	2.7V ~ 5.25V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	20-TSSOP
Mounting Type:	Surface Mount
