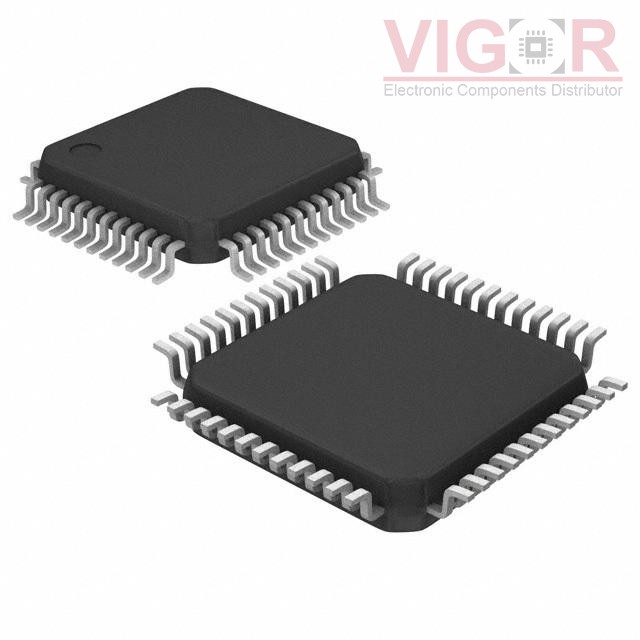

MAX1420ECM+TD

Part No :: MAX1420ECM+TD

Manufacturer: Maxim Integrated

VIGOR # :: 4877941

Description: IC ADC 12BIT PIPELINED 48TQFP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: MAX1420ECM+TD PDF

Country of origin: -

Date code: -

MAX1420ECM+TD Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Bits:	12
Sampling Rate (Per Second):	60M
Number of Inputs:	1
Input Type:	Differential, Single Ended
Data Interface:	Parallel
Configuration:	S/H-ADC
Ratio - S/H:ADC:	1:1
Number of A/D Converters:	1
Architecture:	Pipelined
Reference Type:	External, Internal
Voltage - Supply, Analog:	3.135V ~ 3.465V
Voltage - Supply, Digital:	2.7V ~ 3.63V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	48-LQFP
Supplier Device Package:	48-TQFP (7x7)
Mounting Type:	Surface Mount
