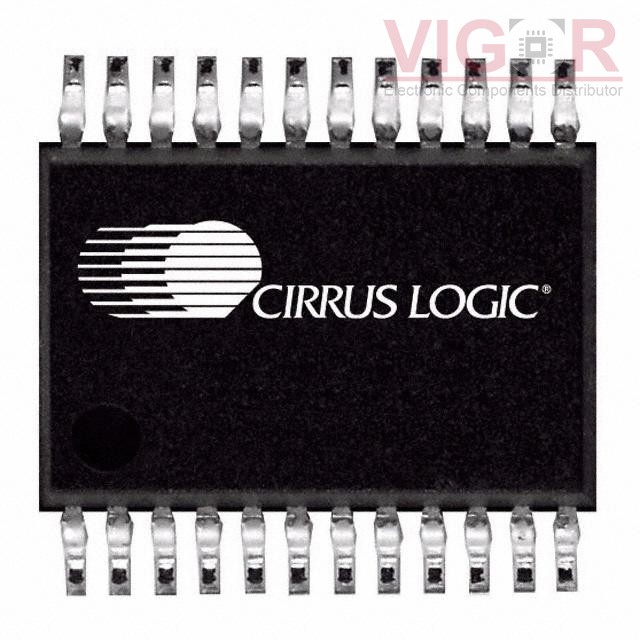

CS5566-ISZR

Part No :: CS5566-ISZR

Manufacturer: Cirrus Logic

Description: IC ADC 24BIT SIGMA-DELTA 24SSOP

Catalog: Data Acquisition - Analog to Digital Converters (ADC)

DataSheet: CS5566-ISZR PDF

Availability: 1187 pieces

Unit Price: ~~$0.00000~~

Current price of CS5566-ISZR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CS5566-ISZR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Bits:	24
Sampling Rate (Per Second):	5k
Number of Inputs:	1
Input Type:	Differential
Data Interface:	SPI
Configuration:	ADC
Ratio - S/H:ADC:	-
Number of A/D Converters:	1
Architecture:	Sigma-Delta
Reference Type:	External
Voltage - Supply, Analog:	±2.375V ~ 2.625V, 5V
Voltage - Supply, Digital:	1.8V ~ 3.3V
Features:	-
Operating Temperature:	-40°C ~ 85°C
Package / Case:	24-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	24-SSOP
Mounting Type:	Surface Mount
