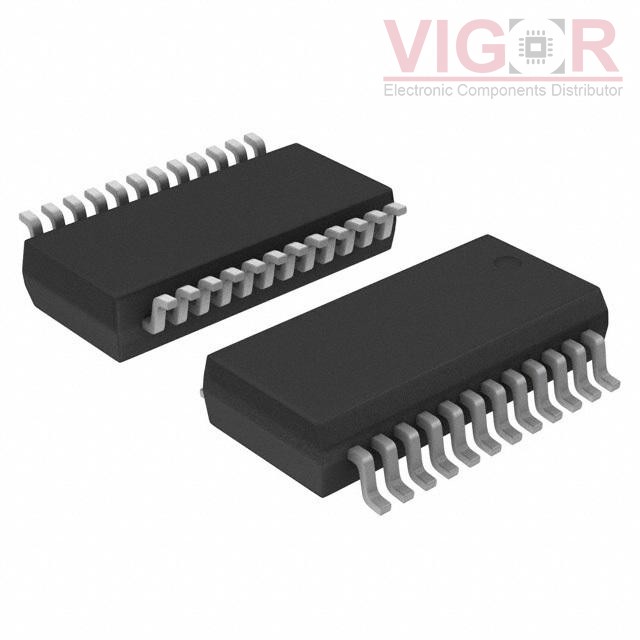

MAX503EAG

Part No :: MAX503EAG

Manufacturer: VIGOR

VIGOR # :: 3789358

Description: PARALLEL-INPUT, VOLTAGE-OUT

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX503EAG PDF

Country of origin: -

Date code: -

MAX503EAG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	10
Number of D/A Converters:	1
Settling Time:	25µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External, Internal
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±0.5 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	24-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	24-SSOP
Mounting Type:	Surface Mount
