MAX5825AWP+T

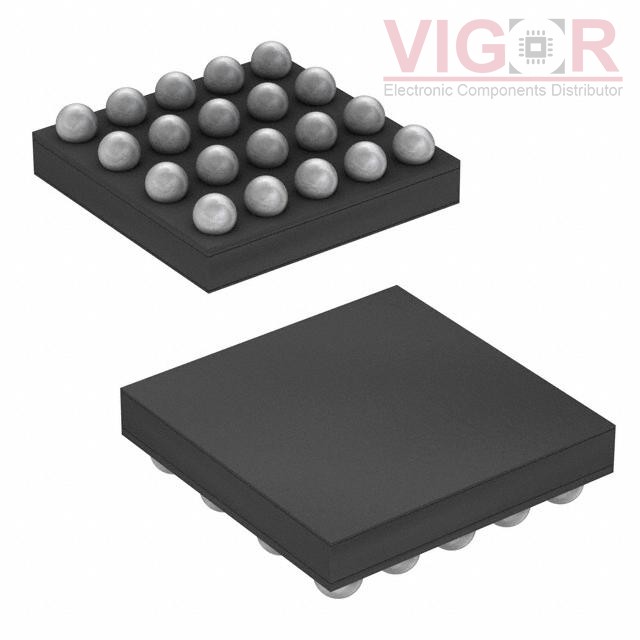

Image is for reference,
please contact us to get the real picture

Part No :: MAX5825AWP+T

Manufacturer: Maxim Integrated

Description: IC DAC 12BIT V-OUT 20WLP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX5825AWP+T PDF

Availability: 5305 pieces

Unit Price: ~~$12.50600~~

Current price of MAX5825AWP+T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MAX5825AWP+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Bits:	12
Number of D/A Converters:	8
Settling Time:	4.5µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	I²C
Reference Type:	External, Internal
Voltage - Supply, Analog:	2.7V ~ 5.5V
Voltage - Supply, Digital:	2.7V ~ 5.5V
INL/DNL (LSB):	±0.5, ±0.2
Architecture:	R-2R
Operating Temperature:	-40°C ~ 125°C
Package / Case:	20-WFBGA, WLBGA
Supplier Device Package:	20-WLP (2.52x2.08)
Mounting Type:	Surface Mount
