AD5765BSUZ

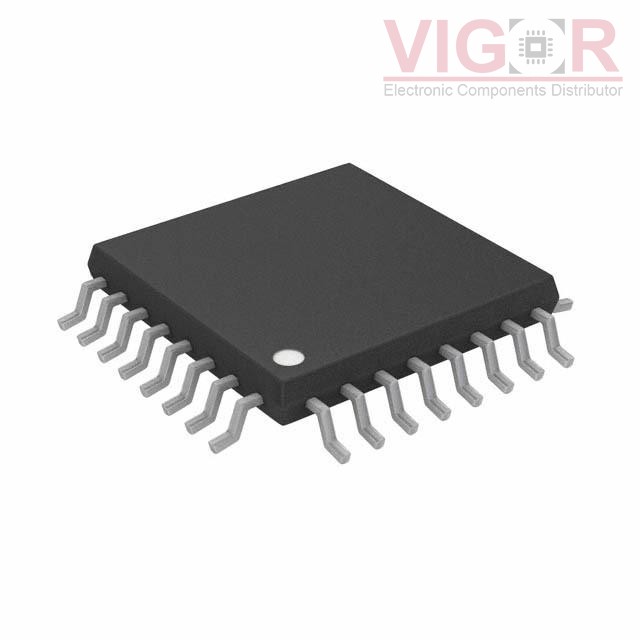

Image is for reference,
please contact us to get the real picture

Part No :: AD5765BSUZ

Manufacturer: VIGOR

Description: DAC, 4 CH, SERIAL INPUT LOADING

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD5765BSUZ PDF

Availability: 1524 pieces

Unit Price: ~~$24.06000~~

Current price of AD5765BSUZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AD5765BSUZ Specifications

Type	Description
Series:	iCMOS®
Package:	Tray
Part Status:	Obsolete
Number of Bits:	16
Number of D/A Converters:	4
Settling Time:	10µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI, DSP
Reference Type:	External
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	2.7V ~ 5.25V
INL/DNL (LSB):	±2 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 105°C
Package / Case:	32-TQFP
Supplier Device Package:	32-TQFP (7x7)
Mounting Type:	Surface Mount
