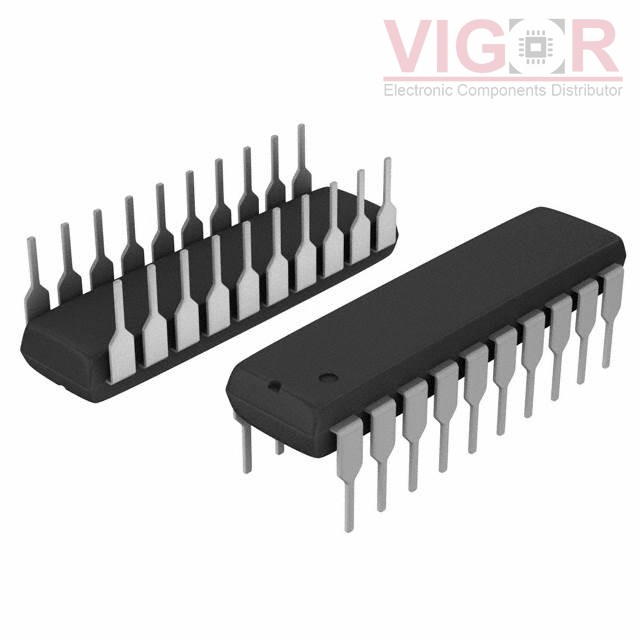

AD7549JNZ

Part No :: AD7549JNZ

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3791447

Description: IC DAC 12BIT A-OUT 20DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7549JNZ PDF

Country of origin: -

Date code: -

AD7549JNZ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	12
Number of D/A Converters:	2
Settling Time:	1.5µs
Output Type:	Current - Unbuffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	15V
Voltage - Supply, Digital:	15V
INL/DNL (LSB):	±1 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
AD7549JN Match 100%	VIGOR DAC, PARALLEL, 4 BITS INPUT	AD7549JNZ vs AD7549JN
