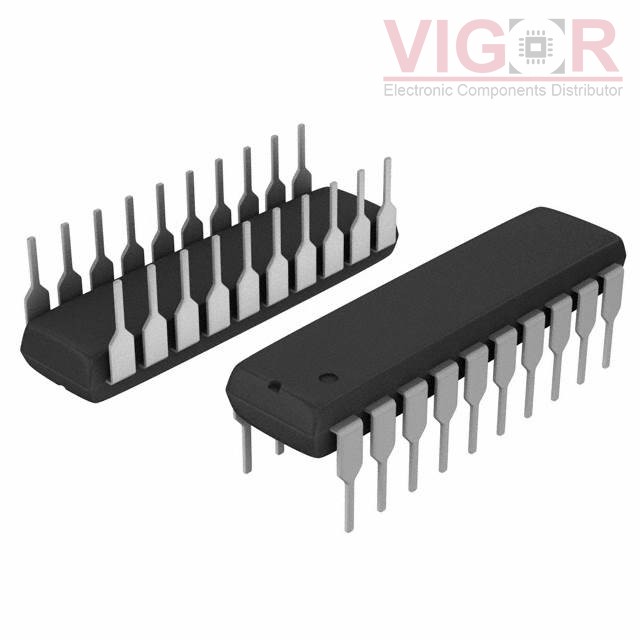

AD7945BN

Part No :: AD7945BN

Manufacturer: VIGOR

VIGOR # :: 3792139

Description: DAC, PARALLEL, WORD INPUT

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7945BN PDF

Country of origin: -

Date code: -

AD7945BN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	12
Number of D/A Converters:	1
Settling Time:	600µs (Typ)
Output Type:	Current - Unbuffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±0.5 (Max), ±0.5 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
AD7948BN Match 100%	VIGOR DAC, PARALLEL, 8 BITS INPUT	AD7945BN vs AD7948BN
AD7945BNZ Match 100%	Linear Technology (Analog Devices, Inc.) IC DAC 12BIT A-OUT 20DIP	AD7945BN vs AD7945BNZ
AD7948BNZ Match 100%	Linear Technology (Analog Devices, Inc.) IC DAC 12BIT A-OUT 20DIP	AD7945BN vs AD7948BNZ
