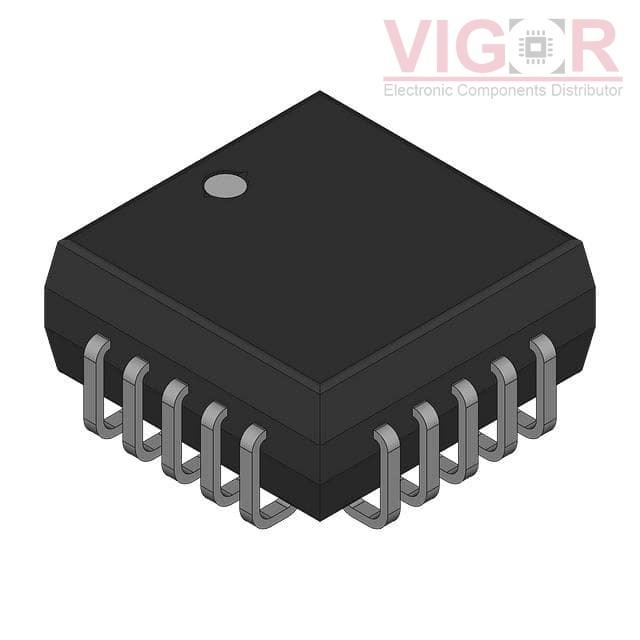

AD7224LP

Part No :: AD7224LP

Manufacturer: VIGOR

VIGOR # :: 3792222

Description: DAC, PARALLEL, 8 BITS INPUT

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: AD7224LP PDF

Country of origin: -

Date code: -

AD7224LP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Number of D/A Converters:	1
Settling Time:	20µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	11.4V ~ 16.5V, ±5V
Voltage - Supply, Digital:	14.25V ~ 15.75V
INL/DNL (LSB):	±0.5 (Max), ±1 (Max)
Architecture:	R-2R
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
AD7224LP-REEL Match 100%	VIGOR DAC, PARALLEL, 8 BITS INPUT	AD7224LP vs AD7224LP-REEL
AD7224LPZ-REEL Match 100%	Linear Technology (Analog Devices, Inc.) IC DAC 8BIT V-OUT 20PLCC	AD7224LP vs AD7224LPZ-REEL
